Rod End Bearings for Male, Female and Threaded Joint Applications

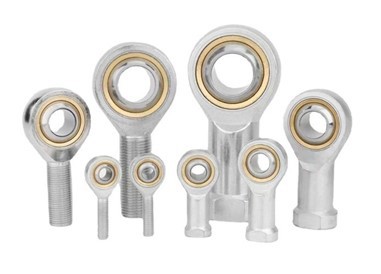

DLY supplies rod end bearings for linkage systems, adjustable rods, motion joints and replacement parts. The product range covers male rod end bearings, female rod end bearings, metric rod ends, inch thread rod ends, right-hand thread and left-hand thread options.
For replacement or batch purchase, buyers can send the old model, bore size, thread size, thread direction, rod end type and application photos. DLY can help check a suitable standard or alternative rod end bearing option before quotation.
Check DLY Rod End Bearing Models Below
The product list below includes common rod end bearing models. If the exact model is not shown, DLY can still help confirm whether a standard, alternative or customized option is available.
-
![POS10 Male Rod End Bearing]()
POS10 Male Rod End BearingPOS10 is a male rod end bearing with a 10 mm bore and M10×1.5 male thread, designed for linkage, oscillating motion, cylinder connection and mechanical adjustment systems. It combines a hardened -
![POS8]()
POS8POS8 male rod end bearing with 8 mm bore, M8×1.25 external thread, 7.2 kN dynamic load rating and 11.6 kN static load rating. Available for linkage and motion-control assemblies. -
![POS6 Male Rod End Bearing]()
POS6 Male Rod End BearingPOS6 male rod end bearing with 6mm bore, M6×1.0 right-hand male thread, bronze liner, zinc plated carbon steel body, grease nipple, 13° angular misalignment and 7.2KN static load capacity. -
![POS5 Male Rod End Bearing]()
POS5 Male Rod End BearingPOS5 male rod end bearing with 5mm bore, M5×0.8 right-hand male thread, zinc-plated carbon steel body, chrome-plated steel ball, bronze liner, and 3.25kN dynamic load capacity. Suitable for linkage, -
![PHS12]()
PHS12Type: 12mm female rod end with M12x1.75 right-hand thread - for smooth and flexible motion in mechanical assemblies. -
![PHS10]()
PHS10PHS10 female rod end bearing with 10 mm bore, M10×1.5 right-hand thread and 11.60 kN static radial load rating. View dimensions and request a quote from DLY. -
![PHS8 Female Rod End Bearing]()
PHS8 Female Rod End BearingDLY PHS8 Female Rod End Bearing is a compact 8mm female thread rod end bearing with M8×1.25 right-hand internal thread. It is used for linkage mechanisms, hydraulic cylinders, automation equipment -
![PHS6]()
PHS6Type: 6mm Female rod end with M6x1 right or left-hand thread - for smooth and flexible motion in mechanical assemblies. -
![PHS5]()
PHS5DLY PHS5 is a compact female rod end bearing with a 5 mm bore and M5×0.8 internal thread. It combines a zinc-plated C45 steel housing, hardened bearing steel spherical inner ring and copper alloy -
![Inch Thread Rod End Bearing]()
Inch Thread Rod End BearingDLY inch thread rod end bearings are designed for linkage systems that require imperial thread compatibility, angular misalignment, and smooth oscillating motion. They are available in male and -
![Male Rod End]()
Male Rod EndDLY POSB Male Rod End Bearings are inch-thread male rod end bearings designed for linkage rods, hydraulic cylinders, automation equipment, machinery and motion control assemblies. The POSB series -
![Female Thread Rod End Joint Bearing]()
Female Thread Rod End Joint BearingFemale Thread Rod End Joint Bearing is a type of rod end bearing with an internal (female) threaded hole. It is used to connect rods or shafts with external (male) threads, allowing for rotation or
How to Choose the Right Rod End Bearing
Rod end bearings are selected by connection structure, thread size, bore size and working condition. Before placing an order, buyers should confirm whether the part is a male or female rod end, right-hand or left-hand thread, metric or inch thread, and whether the application needs sealing, PTFE lining or special replacement matching.
Bore Size
Confirm the inner bore size of the spherical bearing, such as 5mm, 6mm, 8mm, 10mm or 12mm.
Thread Size
Check the thread size, such as M5, M6, M8, M10, M12 or inch thread specifications.
Male or Female Type
Select external thread or internal thread according to how the rod end connects with the linkage or rod.
Thread Direction
Right-hand and left-hand thread directions must be confirmed before replacement or batch purchasing.
How to Choose Male or Female Rod End Bearings
Male and female rod ends are not interchangeable. The difference is mainly the thread structure. If the connection part has an internal thread, a male rod end is usually used. If the connection part is a threaded rod or stud, a female rod end is usually selected.
Right-Hand, Left-Hand, Metric and Inch Thread Options
Thread direction and thread standard are important for rod end bearing replacement. A wrong thread direction or thread size may cause the rod end bearing to fail during installation.
Right-Hand Thread
Common thread direction for standard linkage, joint and adjustment applications.
Left-Hand Thread
Used in adjustment rods or special linkage structures where reverse thread is required.
Metric Thread
Common sizes include M5, M6, M8, M10, M12 and other metric specifications.
Inch Thread
Used for equipment designed with imperial thread standards and replacement requirements.
Sealed, PTFE-Lined, Metric and Inch Rod End Options
Different working environments may require different rod end structures. Sealing, liner type and thread standard should be confirmed according to load, movement frequency, dust condition and maintenance requirement.
Common Use Cases for Rod End Bearings
Rod end bearings are used where linkage movement, angular misalignment and adjustable connection are required. The suitable model depends on load direction, movement range, thread type and installation structure.
Mechanical Linkage Systems
Used for connecting rods, adjustment rods and joint movement structures.
Automation Equipment
Used in actuators, adjustable arms, fixtures and motion connection points.
Agricultural Machinery
Used in linkage rods, steering rods, control arms and adjustment mechanisms.
Steering and Control Assemblies
Used where angular movement and adjustable threaded connections are needed.
Step-by-Step Rod End Bearing Ordering Guide
To help DLY confirm the quotation faster, please provide the old model, bore size, thread size, thread direction, male or female type, quantity and sample photo when available.
Send Model or Photo
Send the old model, sample photo, drawing or application requirement.
Confirm Size
Confirm bore size, thread size and male or female thread structure.
Check Thread Direction
Confirm right-hand or left-hand thread and metric or inch standard.
Confirm Quantity
Confirm quantity, packaging requirement, destination and delivery expectation.
Receive Quotation
DLY provides model confirmation, quotation, lead time and shipping information.
FAQ About Rod End Bearings
What is a rod end bearing used for?
A rod end bearing is used in linkage systems where rotation, angular movement or adjustable connection is required.
What is the difference between POS and PHS rod end bearings?
POS rod end bearings usually have male external threads, while PHS rod end bearings usually have female internal threads.
How do I choose male or female rod end bearings?
Choose male thread when the rod end needs to screw into a female threaded part. Choose female thread when it needs to connect with a male threaded rod or stud.
What is the difference between right-hand and left-hand thread rod ends?
Right-hand thread is the common thread direction. Left-hand thread is used when reverse adjustment or special linkage movement is required.
Can DLY supply inch thread rod end bearings?
DLY can help confirm inch thread rod end bearing requirements according to bore size, thread size and sample information.
What information is needed for a rod end bearing quotation?
Please send the model, bore size, thread size, thread direction, male or female type, quantity and sample photo if available.
Can rod end bearings allow angular misalignment?
Yes. Rod end bearings are designed to allow angular movement, but the suitable misalignment range depends on the model and structure.
Need Rod End Bearing Price or Replacement Support?
Send DLY your rod end bearing model, bore size, thread size, thread direction, male or female type, quantity or sample photo. Our team can help confirm suitable rod end bearing options before quotation.
Zhejiang DLY Automation Manufacturing Co., Ltd. is well-known as one of the leading rod end bearing manufacturers and suppliers in China. Please feel free to buy high quality rod end bearing made in China here and get pricelist from our factory. For customized service and OEM/ODM service, contact us now.
