Choose the Right Linear Slider Type
Linear slider products are selected according to rail structure, shaft diameter, load direction, accuracy requirement and installation space. The four product directions below help buyers choose the correct motion component before sending an inquiry.
Linear Guide Slider
Also called a linear guide block or guideway carriage. It runs on a profile linear rail and is suitable for higher load, higher rigidity and better positioning accuracy.
View Linear BlocksLinear Guideway System
A matched rail and block system for CNC machines, automation equipment, machine tools, cutting machines and industrial motion platforms.
View Linear GuidewaysLinear Bearing Slider
A slider unit assembled with linear bearings and aluminum housing. It is commonly used with round shafts for light and medium-duty linear motion.
View Linear BearingsLinear Module or Slide Unit
A more complete moving axis with guide structure and drive parts. It is used when the project needs guided and controlled linear movement.
View Linear ModulesLinear Guide Slider or Linear Bearing Slider?
If your machine uses square profile rails, choose a linear guide slider. If your machine uses round shafts, choose a linear bearing slider or bearing block assembly. DLY can help confirm the correct type according to your drawing or sample photo.
| Selection Point | Linear Guide Slider | Linear Bearing Slider |
|---|---|---|
| Main structure | Profile rail with matched guide block or carriage. | Round shaft with linear bearing block or aluminum slider housing. |
| Suitable for | Higher rigidity, higher load and better positioning accuracy. | Simple structure, smooth sliding and light to medium load. |
| Common product direction | HD, ED, RD, MD linear guide blocks and guide rails. | LM, LME, SCS, SBR, TBR and flanged linear bearing units. |
| Typical applications | CNC machines, automation systems, machine tools, cutting machines and precision equipment. | Packaging machines, small automation equipment, testing machines and light-duty sliding mechanisms. |
| Information needed | Rail width, block model, preload, accuracy grade and installation size. | Shaft diameter, bearing model, housing type, length and mounting hole size. |
Model confirmation support: If you are replacing an old slider or bearing block, please send the original model, rail or shaft size, mounting dimensions and photos. DLY can help reduce model mismatch before quotation.

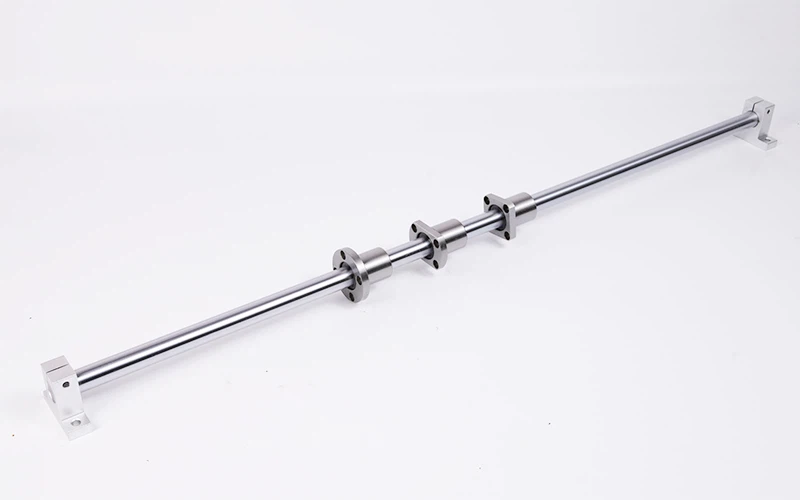

Linear Shaft, Bearing and Slider Unit Matching
For round shaft motion systems, the slider unit should be checked together with the shaft, bearing body, aluminum housing and support parts. This helps improve running smoothness and avoid installation problems.

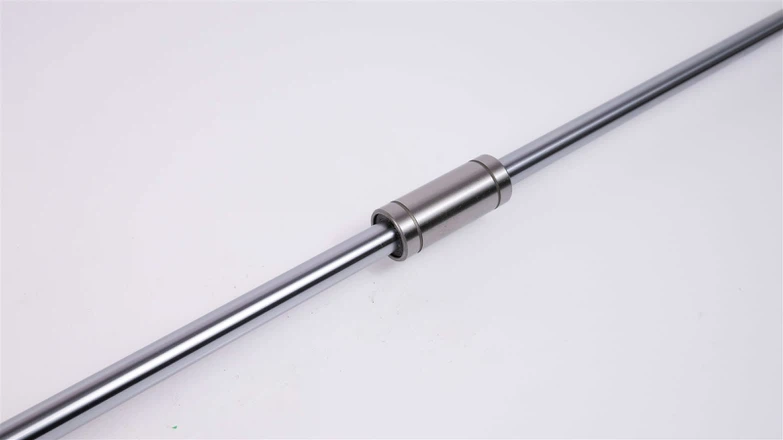

Linear Shaft
Hardened round shaft
Linear Bearing
LM or LME bearing body
Slider Unit
Aluminum housing or flange slide
Shaft Support
Support blocks or supported rail
-
![SCV...UU Linear Bearing Slide Unit]()
SCV...UU Linear Bearing Slide UnitSCV...UU Short Type Linear Motion Ball Slide Unit is a compact linear bearing slide unit designed for smooth linear movement on round shafts. It integrates an LME...UU linear bearing inside a -
![Linear Bearing Series Aluminum Slides]()
Linear Bearing Series Aluminum SlidesDLY Linear Bearing Series Aluminum Slides are shaft-guided linear motion components used with round linear shafts. The series includes closed, open, adjustable and flange-mounted linear bearing -
![Linear Sliding Unit Slider]()
Linear Sliding Unit SliderDLY linear sliding unit sliders include SBRUU, TBRUU and SCSUU bearing blocks for round shaft and supported rail systems. Aluminum housing, easy installation, smooth linear motion, and multiple bore -
![Linear Bearing Flanged Aluminum Slides]()
Linear Bearing Flanged Aluminum SlidesDLY linear bearing flanged aluminum slides are compact aluminum slide units with built-in linear bearings, designed for smooth, low-friction motion on hardened round shafts in automation and light -
![Flange Circular Linear Bearings Aluminum Slide]()
Flange Circular Linear Bearings Aluminum SlideFlange Circular Linear Bearings Aluminum Slide is designed for compact shaft-guided linear motion systems. The round flange structure allows the bearing to be mounted directly onto a plate, bracket, -
![Flange Square Linear Bearing Aluminum Slide]()
Flange Square Linear Bearing Aluminum SlideDLY Flange Square Linear Bearing Aluminum Slide is an LMK series square flange linear bearing unit designed for round shaft linear motion systems. It combines a linear ball bearing with a four-hole -
![Flange H Linear Bearing Aluminum Slide]()
Flange H Linear Bearing Aluminum SlideFlange H-type linear bearing aluminum slider (elliptical flange linear bearing) is also called double cut bearing. Flange H-type linear bearing aluminum slider is the kind of bearing with flange,
How DLY Helps Confirm the Correct Slider Type
Many buyers use names such as linear slider, slide block, guide slider or bearing slider for different motion parts. Before quotation, DLY checks the actual machine structure first to help avoid model mismatch.
For replacement orders, model photos and mounting dimensions are very helpful. For new projects, drawings, load direction and installation space can help DLY recommend a more suitable linear motion solution.
Details Needed for Faster Selection
Application Directions for Linear Slider Products
Different linear slider structures are used in different machines. A profile rail slider is usually selected when rigidity and accuracy are important. A linear bearing slider is more suitable when the system is designed around cylindrical shafts and simple installation.
CNC and Machine Tool Motion
Linear guide sliders are commonly used where stable movement, repeatability and load capacity are important. Matched guide rails and blocks help improve machine rigidity.
Automation and Packaging Equipment
Linear bearing sliders and supported rail units can be used for pushing, positioning, feeding and simple straight-line movement in automatic equipment.
Linear Modules and Small Motion Axes
When the project needs a more complete movement axis, DLY can also support linear modules and related components for assembled linear motion systems.
Linear Slider Ordering Process
To make quotation and model confirmation more efficient, DLY recommends confirming the slider structure before discussing price. This is especially important when different markets use similar names for different linear motion parts.
Confirm Structure
Check whether the slider works with a profile rail, round shaft, supported rail or complete module.
Check Dimensions
Confirm rail width, shaft diameter, mounting holes, block height and installation space.
Select Model
DLY helps match linear guide blocks, linear bearings, bearing blocks or slider assemblies.
Arrange Supply
Standard models, replacement parts, matched sets and batch orders can be supported according to your project.
Related Linear Motion Components
Linear slider selection is often connected with guide rails, linear blocks, linear shafts, linear bearings and complete linear modules. DLY can help buyers check matched components according to machine structure.
Linear Guideway
Matched rail and block systems for higher rigidity and accuracy.
View Linear GuidewayFAQ About Linear Slider Selection
Is a linear slider the same as a linear guide block?
Not always. In many searches, linear slider may refer to a linear guide block or carriage that runs on a profile rail. In other machines, it may also refer to a linear bearing block or aluminum slider used with a round shaft.
When should I choose a linear guide slider?
Choose a linear guide slider when the machine requires higher rigidity, higher load capacity, better accuracy and more stable running performance. It is commonly used with profile linear guide rails.
When should I choose a linear bearing slider?
Choose a linear bearing slider when the machine uses round shafts and needs a simple, smooth and cost-effective linear motion structure. Common options include linear bearings, SCS bearing blocks and supported rail slider units.
Can DLY supply both rails and sliders?
Yes. DLY can support linear guide rails with matched blocks, round shafts with linear bearings, supported rail assemblies and related linear motion components.
Need Help Choosing a Linear Slider?
Send your rail type, shaft diameter, block model, drawing or sample photo. DLY can help confirm whether your project needs a linear guide slider, a linear bearing slider or a complete linear motion assembly.
