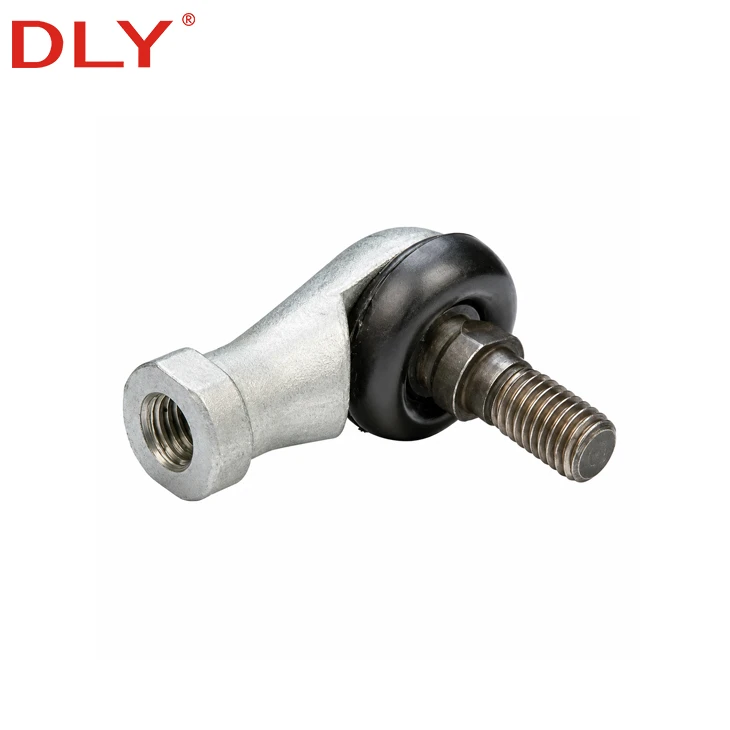

SQ Series L-Shaped Female Thread Ball Joint Rod End Bearing
The SQ Series ball joint rod end bearing combines an L-shaped female-thread housing with a compact ball joint structure. It is designed for mechanical linkages where angular movement, oscillation and convenient threaded connection are required.
The SQ-RS series is available in nominal joint sizes from 5 mm to 22 mm, with metric female threads ranging from M5×0.8 to M22×1.5. Right-hand and left-hand thread versions can be supplied for different linkage arrangements.
Series: SQ-RS
Joint Size: 5–22 mm
Thread Type: Female thread
Thread Direction: Right-hand or left-hand
Housing Material: Zinc-base alloy
Rated Load: 2.2–48 kN
Product Features
1. L-Shaped Female Thread Design
The L-shaped housing provides a compact 90-degree connection arrangement, making the SQ Series suitable for connecting rods, control mechanisms and other linkage systems with limited installation space.
2. Ball Joint for Angular Movement
The internal ball joint allows rotational, oscillating and angular movement within the permitted articulation angle, helping compensate for limited angular misalignment between connected components.
3. RS Sealed Structure
The SQ-RS version uses a sealed joint structure around the ball-joint area, providing additional protection for the internal contact surfaces during operation.
4. Right-Hand and Left-Hand Thread Options
Both right-hand and left-hand threaded versions are available, allowing the bearings to be used in adjustable paired-linkage systems.
5. Multiple Thread Pitches Available
Selected models are available with alternative thread pitches. SQ10, SQ12, SQ14 and SQ16 include "-1" versions to meet different connection requirements.
Dimension Drawing
Dimensions are in millimeters unless otherwise specified.
SQ Series Dimensions and Load Ratings
| Model | d | d1 / Thread | d2 min | d3 max | l max | l1 min | l2 | L3 max | S1 | L max | L1 | L2 max | L3 min | D1 max | D2 max | D3 max | S2 | Angle a° | Rated Load (kN) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SQ5-RS | 5 | M5×0.8 | 9 | 19 | 29 | 8 | 10 | 21 | 7 | 35 | 27 | 4 | 14 | 9 | 11 | 16 | 9 | 25 | 2.2 | 0.026 |
| SQ6-RS | 6 | M6×1 | 10 | 20 | 35.5 | 11 | 11 | 26 | 8 | 40 | 30 | 5 | 14 | 10 | 13 | 19 | 11 | 25 | 3.5 | 0.039 |
| SQ8-RS | 8 | M8×1.25 | 12 | 24 | 42.5 | 12 | 14 | 31 | 10 | 48 | 36 | 5 | 17 | 12.5 | 16 | 23 | 14 | 25 | 6.6 | 0.068 |
| SQ10-RS | 10 | M10×1.25 | 14 | 30 | 50.5 | 15 | 17 | 37 | 11 | 57 | 43 | 6.5 | 21 | 15 | 19 | 27 | 17 | 25 | 10 | 0.112 |
| SQ10-RS-1 | 10 | M10×1.5 | 14 | 30 | 56.5 | 21 | 17 | 43 | 11 | 57 | 43 | 6.5 | 21 | 15 | 19 | 27 | 17 | 25 | 10 | 0.112 |
| SQ12-RS | 12 | M12×1.25 | 17 | 32 | 57.5 | 17 | 19 | 42 | 15 | 66 | 50 | 6.5 | 25 | 17.5 | 22 | 31 | 19 | 25 | 16 | 0.164 |
| SQ12-RS-1 | 12 | M12×1.75 | 17 | 32 | 64.5 | 24 | 19 | 49 | 15 | 66 | 50 | 6.5 | 25 | 17.5 | 22 | 31 | 19 | 25 | 16 | 0.164 |
| SQ14-RS | 14 | M14×1.5 | 19 | 38 | 73.5 | 22 | 21.5 | 56 | 17 | 75 | 57 | 8 | 26 | 20 | 25 | 35 | 22 | 25 | 19 | 0.254 |
| SQ14-RS-1 | 14 | M14×2 | 19 | 38 | 79.5 | 28 | 21.5 | 62 | 17 | 75 | 57 | 8 | 26 | 20 | 25 | 35 | 22 | 25 | 19 | 0.254 |
| SQ16-RS | 16 | M16×1.5 | 22 | 44 | 79.5 | 23 | 23.5 | 60 | 19 | 84 | 64 | 8 | 32 | 22 | 27 | 39 | 22 | 20 | 26 | 0.336 |
| SQ16-RS-1 | 16 | M16×2 | 22 | 44 | 85.5 | 29 | 23.5 | 66 | 19 | 84 | 64 | 8 | 32 | 22 | 27 | 39 | 22 | 20 | 26 | 0.336 |
| SQ18-RS | 18 | M18×1.5 | 23 | 45 | 90 | 25 | 26.5 | 68 | 20 | 93 | 71 | 10 | 34 | 25 | 31 | 44 | 27 | 20 | 33 | 0.464 |
| SQ20-RS | 20 | M20×1.5 | 27 | 50 | 90 | 25 | 27 | 68 | 24 | 99 | 77 | 10 | 35 | 27.5 | 34 | 44 | 30 | 20 | 45 | 0.538 |
| SQ22-RS | 22 | M22×1.5 | 27 | 52 | 95 | 26 | 28 | 70 | 24 | 109 | 84 | 12 | 41 | 30 | 37 | 50 | 32 | 16 | 48 | 0.713 |
Model and Thread Notes
SQ10, SQ12, SQ14 and SQ16 are available in standard and "-1" versions. The main difference is the female thread pitch together with several corresponding shank dimensions.
Left-hand thread versions can be supplied for applications requiring paired adjustment. Please clearly specify the required thread direction when sending an inquiry.
How to Select an SQ Ball Joint Rod End Bearing
When selecting an SQ Series rod end bearing, first confirm the required female thread size and pitch. Models with the same nominal joint size may use different thread pitches, so the thread specification should not be selected by diameter alone.
The nominal joint size, installation dimensions, articulation angle and rated load should also be checked against the mechanical design or the existing component being replaced.
For replacement applications, send the existing model number, dimension drawing or clear product photos so that the dimensions can be compared before quotation.
Typical Applications
SQ Series L-shaped ball joint rod ends are commonly used in mechanical linkage systems that require angular movement and threaded adjustment, including:
- Industrial automation equipment
- Mechanical linkage assemblies
- Control rods and connecting mechanisms
- Packaging and processing machinery
- Agricultural and general industrial machinery
- Adjustable mechanical joint systems
Ordering Information
To help us confirm the correct SQ Series ball joint rod end bearing, please provide:
- Required model number
- Female thread size and pitch
- Right-hand or left-hand thread
- Required quantity
- Application or load requirement
- Drawing or sample dimensions for replacement projects
SQ5-RS, SQ6-RS, SQ8-RS, SQ10-RS, SQ10-RS-1, SQ12-RS, SQ12-RS-1, SQ14-RS, SQ14-RS-1, SQ16-RS, SQ16-RS-1, SQ18-RS, SQ20-RS and SQ22-RS.
FAQ
What is the difference between SQ10-RS and SQ10-RS-1?
Both models use a 10 mm nominal joint size, but SQ10-RS has an M10×1.25 female thread while SQ10-RS-1 uses M10×1.5. Some corresponding shank dimensions are also different.
Can SQ Series rod end bearings be supplied with left-hand threads?
Yes. Right-hand and left-hand threaded versions are available. Please specify the required thread direction when ordering.
Which dimensions should be checked when replacing an existing SQ rod end?
Check the female thread size and pitch, nominal joint size, overall length, housing dimensions, joint angle and rated load. For direct replacement, comparing the complete dimension drawing is recommended.
How do I choose between the standard and "-1" versions?
Select according to the required female thread pitch and installation dimensions. The "-1" version is not simply another name for the same component.
