When choosing linear guideways for CNC router, one common question we hear from clients is whether to select linear ball guideway or roller type linear guideway.
As a roller linear guideway supplier, we usually explain: ball linear guideways have low friction and allow high-speed motion, making them suitable for light-load and high-speed applications. However, the contact area of balls is limited, so their rigidity and load capacity reach the limit quickly.
Therefore, for heavy-duty CNC routers used in woodworking or stone processing, roller type linear guideway is generally preferred.

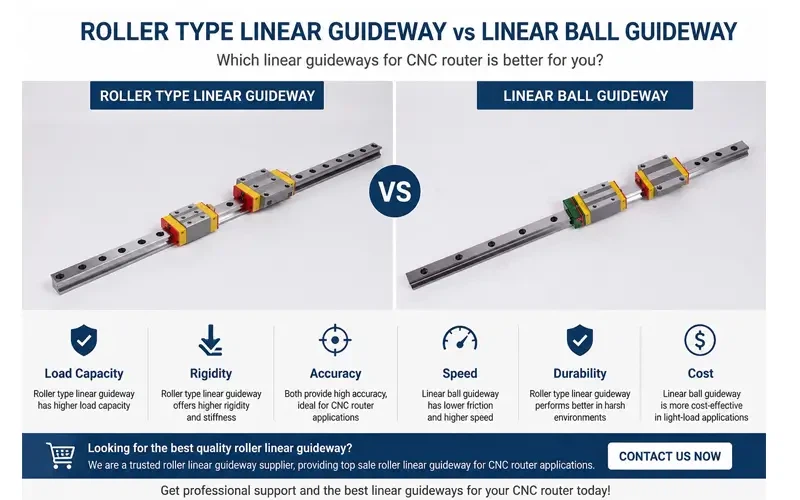

This article will explain the differences between roller type linear guideways and linear ball guideway.
Differences Between Roller Type Linear Guideway and Linear Ball Guideway
Contact Area
Ball guideways use point contact, while roller guideways use line contact.
For the same size, the contact area of a roller guideway is several times larger than that of a ball guideway.
A larger contact area reduces pressure per unit area, minimizes plastic deformation on the rail, and significantly improves accuracy retention.
Rigidity
Line contact directly results in high rigidity.
The vertical and horizontal stiffness of a roller type linear guideway is much higher than a ball guideway of the same size.
For CNC routers with strong cutting forces and vibrations, higher rigidity ensures better surface finish and a more stable cutting process.
Load Capacity
For the same size, the dynamic and static load ratings of roller guideways are usually 30%–50% higher than ball guideways.
In vertical machining centers, horizontal machining centers, or heavy gantry applications, a top sale roller linear guideway can achieve the same load with a smaller size, leaving more space for machine design.
Key Considerations When Selecting Linear Guideways for CNC Routers
Load Capacity
The guideway must withstand lateral and vertical forces from cutting. Otherwise, accuracy decreases or rails deform.
Medium to large CNC routers usually choose roller type linear guideway because line contact provides higher load capacity.
Rigidity & Stability
High-rigidity guideways reduce vibration and improve surface finish.
Long-travel machines require stiffer guideways to avoid sagging in the middle, which affects precision.
Accuracy
Consider the guideway's straightness, repeatability, and overall installation precision.
Critical for fine carving and precision machining.
Friction & Smoothness
Low friction allows higher speed and reduces mechanical load.
Ball linear guideway has lower friction, while roller type linear guideway has slightly higher friction but better rigidity for heavy loads.
Durability & Maintenance
Includes wear resistance, dust protection, and lubrication requirements.
CNC routers produce a lot of dust (wood chips, plastic debris), so guideways must be easy to clean and lubricate.
Travel Length & Guideway Type Match
Small machines can use ball guideways.
Long-travel or heavy-duty machines prefer roller guideways.
Match guideway rigidity with worktable length to maintain precision over long travel.
Cost & Value
High-rigidity best quality roller linear guideway is more expensive but offers better value for medium and large machines.
Ball guideways are cheaper but limited to light-load applications.
Conclusion
For CNC routers, load capacity, rigidity, accuracy, and durability are the key factors when selecting linear guideways.
Roller type linear guideway is usually the first choice for long-travel, heavy-duty CNC routers, while linear ball guideway suits small, light-load machines.
