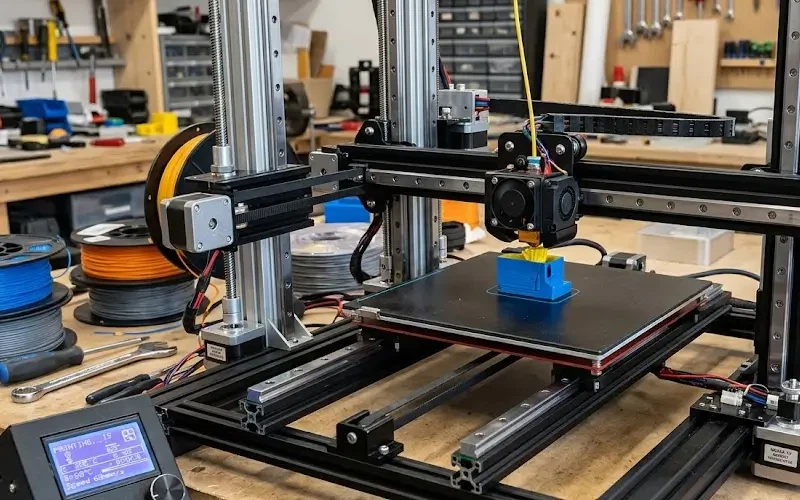

What are Linear Rails for 3D Printing? The Complete Guide

Linear rails for 3D printing are compact guide systems used to control the straight-line movement of the print head, gantry or build platform. A profile linear guide mainly consists of a hardened rail and a recirculating ball block. It supports the moving load and constrains unwanted movement while a belt, lead screw or ball screw provides the driving force.

A suitable linear guide can improve axis rigidity and motion consistency, but rail size alone does not determine print quality. The printer frame, mounting surfaces, motor capacity, moving mass, acceleration settings and installation alignment must work together as one motion system.

In the strict mechanical sense, a 3D printer linear rail usually refers to a profile rail with one or more recirculating ball blocks. The block moves along precision-machined raceways in the rail and supports loads from multiple directions.

The rail performs two main functions:

It defines the path followed by the moving printer component.
It resists vertical, lateral and moment loads applied to the carriage.

The rail does not generate the commanded position by itself. Position is produced by the motor and drive system, while the linear guide keeps the moving structure mechanically constrained along the intended path.

This distinction matters when diagnosing printing problems. Replacing a guide system may reduce mechanical play, but it cannot correct motor step loss, loose pulleys, unsuitable firmware settings or extrusion problems.

The phrase "3D printer linear rail" is sometimes used loosely for several different guide structures. These systems can all produce linear movement, but their construction and operating characteristics are different.

Guide System	How It Works	Main Advantages	Main Limitations
Profile linear guide	A recirculating ball block runs along profiled rail raceways.	Compact installation, good rigidity and useful moment-load support.	Requires a flat, straight and accurately aligned mounting surface.
Round shaft with linear bearing	A ball bearing travels along a hardened cylindrical shaft.	Simple structure, widely available parts and convenient replacement.	Long unsupported shafts may deflect as load and span increase.
Supported round rail	The round shaft is continuously supported by an aluminum base.	Lower shaft deflection and relatively simple assembly.	Larger cross-section and different moment characteristics from a profile rail.
V-slot roller system	Polymer wheels run directly on an aluminum extrusion.	Low component cost and easy DIY assembly.	Wheel wear, contamination and eccentric adjustment can affect movement over time.
Polymer sliding guide	A low-friction polymer liner slides along a matching guide.	Quiet operation and no grease contamination in suitable designs.	Friction, clearance, temperature behavior and load capacity differ from rolling guides.

None of these structures is automatically best for every printer. The correct choice depends on machine size, cost target, operating environment and required motion performance.

Better control of carriage movement: A profile guide constrains translation and resists unwanted pitch, yaw and roll. This is useful when the carriage carries a direct-drive extruder, multiple print heads, a large heated bed or another offset load.

Compact load support: A miniature guide can provide useful rigidity within a relatively small installation space. This is helpful on compact gantries where separate shafts, bearings and bearing housings would occupy more room.

More consistent adjustment: A correctly installed profile rail does not require the same eccentric-wheel adjustment used by many V-slot systems. The rail and block geometry control their relative relationship.

Flexible block arrangements: Designers can use one rail with one or two blocks, or two parallel rails with several blocks. The arrangement can be matched to the carriage width, load direction and applied moment.

These benefits should not be overstated. Linear rails may improve the mechanical stability of an axis, but they do not by themselves eliminate ringing, layer shifting, stringing, rough extrusion or dimensional error.

X axis: The X axis often carries the print head and performs frequent acceleration reversals. Low moving mass is therefore important. A compact rail and block arrangement is normally more appropriate than an oversized guideway.

For a light Bowden print head, the applied load may be small. A direct-drive extruder, tool changer or multi-material head creates greater vertical and moment loads and may justify a larger rail, wider block or longer block.

Y axis: On a bed-slinger printer, the Y axis carries the build plate, heater, printed part and mounting structure. The guide arrangement should resist bed pitching and yawing during acceleration.

A wider spacing between blocks or a two-rail structure may offer more useful stability than simply choosing one larger rail.

Z axis: The Z axis normally moves more slowly but must maintain stable vertical guidance. Depending on the printer structure, the guideways may support a gantry, print bed or complete build platform.

Two vertical rails must be installed parallel to each other and coordinated with the lead screws or ball screws. The guideway should guide the load; the drive screw should not be forced to compensate for incorrectly aligned rails.

Miniature linear guides are commonly identified by nominal sizes such as 7, 9, 12 and 15. The number identifies the rail family, but it is not enough to complete the selection.

The following factors should be considered together:

Mass of the print head, bed or gantry;
Direction of the applied load;
Distance between the load center and guide block;
Rail span and surrounding structural support;
Number and spacing of guide blocks;
Maximum travel speed and acceleration;
Available mounting width and installation height;
Required stiffness and acceptable running resistance;
Printer frame rigidity and mounting-surface accuracy.

Nominal Size	General Design Direction	Points to Confirm
Size 7	Very compact and lightweight mechanisms.	Limited mounting area, load offset and available block length.
Size 9	Compact print-head or small gantry axes.	Extruder mass, acceleration and required rigidity.
Size 12	Medium compact axes requiring a balance between rigidity and mass.	Carriage width, block quantity and motor capacity.
Size 15	Larger platforms, heavier heads or more rigid machine structures.	Whether the additional moving mass is justified by the actual load.

This table is a design starting point rather than a universal size rule. A small rail with well-spaced blocks may support an axis more effectively than a larger rail installed with poor support geometry.

DLY MD miniature guides include narrow MDN structures and wider MDW structures. The narrow type uses less installation width and is suitable for compact arrangements. The wider rail and block structure provides a larger mounting footprint and stronger resistance to rolling moments where lateral space is available.

A wider guide structure may be considered when:

Only one rail can be installed beneath the carriage;
The load is offset from the center of the guide;
The build platform or carriage is relatively wide;
Greater resistance to rolling moment is required;
Two narrow parallel rails cannot fit the machine structure.

The final choice should be based on the mounting dimensions and applied moment rather than only on the total vertical load.

A single block may be sufficient for a short, narrow and lightly loaded carriage. Two blocks on one rail increase the effective support length and improve resistance to pitch and yaw moments.

Two parallel rails with two or four blocks can support a larger platform, but they introduce stricter alignment requirements. The second rail must be installed relative to the reference rail without forcing the blocks into a misaligned path.

Before adding more blocks, confirm that the printer frame and mounting plates are sufficiently rigid and accurately manufactured. Additional blocks on an uneven structure may increase binding instead of improving movement.

Block length affects load distribution and moment resistance. A longer block provides a larger effective support length, while a standard block saves mounting space and moving mass.

A long block may be useful for:

A direct-drive extruder with an offset center of gravity;
A single-rail carriage carrying a wider mounting plate;
A build platform exposed to pitching moment;
An axis where two separate blocks cannot be spaced far enough apart.

The mounting-hole pattern must be checked before replacing a standard block with a long block. The two structures should not be assumed to have the same overall length or bolt spacing.

Guideway preload reduces internal clearance and can improve rigidity, but it also increases rolling resistance. A higher preload level is not automatically better for a 3D printer.

DLY MD miniature guides can be configured with clearance, zero-clearance or light-preload options depending on the selected model and accuracy class. For a lightweight belt-driven axis, low resistance may be more important than maximum stiffness. A heavier platform or offset tool head may benefit from controlled light preload if the motor and frame can support it.

Preload should not be used to correct:

A twisted aluminum extrusion;
An uneven rail seat;
Two rails installed out of parallel;
An incorrectly positioned lead screw;
A carriage plate that pulls the blocks out of alignment.

A preloaded block generally makes installation error more noticeable because there is less internal clearance available to accommodate geometric mismatch.

Linear guide accuracy describes characteristics such as dimensional consistency and running accuracy. It should be selected in relation to the accuracy of the complete printer structure.

A high-accuracy guide mounted directly onto an unmachined, twisted or poorly aligned extrusion cannot maintain its catalog-level performance in the completed axis. In many 3D printer designs, mounting geometry and frame stiffness affect the result more than selecting the highest available rail accuracy class.

DLY MD miniature guides are available in normal, high and precision classes. Before specifying a higher class, confirm that the rail seat, rail parallelism, carriage plate and assembly process can preserve that accuracy.

Rail length is not the same as effective printer travel. Space is required for the guide block, block spacing, end clearances, mounting holes and mechanical limits.

When confirming rail length, provide:

Required effective axis stroke;
Number and length of guide blocks;
Required distance between two blocks;
End clearance at both sides;
Rail mounting-hole pitch and end-hole dimensions;
Space for belt clamps, screw nuts, end stops or sensors.

Do not select a rail by making its total length equal to the nominal printer travel. The guide block cannot normally use the complete physical rail length.

Some miniature rails are installed with screws inserted from the top, while other structures are fastened from below. The available access in the printer frame determines which mounting direction is practical.

Confirm the mounting method before machining the aluminum extrusion or carriage plate. Rail width alone does not confirm whether the screw head, counterbore and access direction will fit the assembly.

A precision rail follows the surface to which it is fastened. Installing it on a bowed or twisted extrusion can transfer that error into the guide system.

Inspect the mounting surface. Remove burrs, chips, coating buildup and raised material around the threaded holes.
Establish the reference rail. Use a machined locating edge or another checked straight reference where available.
Install the mounting screws gradually. Tighten from one end in sequence while checking that the rail is not being forced sideways.
Check block movement. Move the block through the complete usable travel before installing the carriage plate.
Install the second rail through the assembled carriage. Keep the second rail slightly adjustable while moving the platform through its stroke.
Tighten the second rail gradually. Recheck movement resistance after each stage of tightening.
Align the drive system separately. The belt, lead screw or ball screw should not pull the carriage sideways.
Perform a final full-stroke test. Check for tight positions, unusual noise and changes in resistance.

When two rails are used, manually measuring only the distance between them is not enough. Their relative height, straightness and parallelism all affect block movement.

For a more detailed procedure, see how to install linear guides accurately.

Recirculating ball guides require suitable lubrication. The correct maintenance interval depends on travel distance, speed, load, operating temperature and contamination rather than a fixed number of days.

For 3D printer service:

Keep filament dust, plastic fragments and airborne debris away from the raceways.
Wipe exposed rail surfaces with a clean, lint-free cloth.
Use a lubricant suitable for the guide model and operating temperature.
Apply only the required amount because excessive lubricant collects dust.
Do not mix incompatible grease and oil without confirming compatibility.
Inspect the rail more frequently in open-frame, workshop or heated environments.

On DLY MD miniature guides, the lubrication method varies by guide size. Some blocks use a lubrication hole in the end cap, while selected larger structures use a grease nipple. Confirm the block structure before applying lubricant.

Symptom	Possible Causes	First Checks
Tight movement at one position	Bent mounting surface, local rail distortion, contamination or alignment error.	Loosen the nearby mounting screws slightly and check whether the resistance changes.
The complete axis feels heavy	Excessive preload, incompatible lubrication, two-rail misalignment or excessive drive tension.	Disconnect the belt or screw drive and test the guide movement separately.
Carriage has detectable play	Clearance-class block, wear, loose carriage bolts or a flexible mounting plate.	Determine whether the movement occurs inside the block or at the mounting interface.
Noise increases after installation	Insufficient lubrication, contamination, forced alignment or raceway damage.	Check cleanliness, lubrication and movement before the rail is fully tightened.
Printed layers shift	Motor step loss, loose pulley, belt problem, nozzle collision or guide binding.	Check the complete drive system instead of replacing the rail immediately.

Selecting only by printer model: Modified print heads and beds can create very different loads on printers with the same basic frame.
Choosing the largest rail available: Excess moving mass may require lower acceleration or a stronger motor.
Ignoring moment load: The distance between the guide and load center may matter more than the total component weight.
Using too many blocks: Additional blocks increase alignment sensitivity and do not compensate for a flexible frame.
Assuming higher preload means higher accuracy: Preload affects clearance and rigidity, not mounting-surface accuracy.
Matching rail length directly to travel: Block length and end clearances reduce effective stroke.
Removing the block without a temporary rail: This can damage the seals or allow balls to leave an unretained block.
Using lubricant as an alignment solution: Lubrication cannot correct rail distortion or parallelism error.

To confirm a miniature guideway for a new printer or retrofit project, provide more than the rail width and total length.

Printer structure and axis position;
Required effective travel;
Maximum available rail width and installation height;
Moving component weight;
Position of the load center relative to the guide;
Number of rails and blocks;
Preferred standard or long block;
Top or bottom mounting requirement;
Maximum speed and acceleration, if available;
Required preload and accuracy class;
Operating temperature and contamination conditions;
Mounting drawing or existing rail dimensions.

DLY supplies MDN narrow-type and MDW wide-type miniature linear guideways for compact equipment. Available options include nominal sizes 7, 9, 12 and 15, different block lengths, mounting structures, accuracy classes and preload levels.

For a shorter explanation of whether a linear rail conversion is worthwhile, read Can Linear Guideways Be Used in 3D Printers?

The best linear rail for a 3D printer is not necessarily the guide with the highest load rating or preload. It is the smallest suitable guide structure that supports the actual load and moment while maintaining acceptable rigidity, smooth movement and manageable moving mass.

The rail must also match the printer frame. Even a precision miniature guide cannot operate correctly when it is forced onto an uneven extrusion or installed out of parallel with the second rail and drive system.

For DLY model confirmation, send the effective travel, axis position, moving load, mounting space, block quantity and installation drawing. These details allow the rail size, narrow or wide structure, block length, preload and accuracy class to be checked before quotation.
