Products Description
DLY 32mm Ball Screws are high-precision linear motion components with an outer diameter of 32mm. They are available in multiple lead options, including 4mm, 5mm, 6mm, 10mm, 32mm, and 64mm, and come in a variety of series such as SFU, DFU, SFI, DFI, SCI, SCM, SFE, and SFA, providing flexible solutions for CNC machines and automation systems.
The 32mm ball screw support is compatible with standard bearings BK25/BF25 and EK25/EF25, ensuring stable and reliable operation under load.
Shaft ends can be customized to connect with different motor coupling methods, including flexible couplings, belt pulleys, and other connection options, making integration with your machinery simple and versatile.
Designed for smooth motion, high load capacity, long service life, and optional preloaded versions to minimize backlash, these 32mm ball screws deliver precise and dependable performance for demanding industrial applications.
Basic Specifications
| Parameter | Standard Specification |
| Name | 32mm Ball Screw |
| Shaft Nominal Diameter | 32mm |
| Standard Material | S55C Carbon Steel |
| Shaft Surface Hardness | HRC58-62 |
| Accuracy Grade | C5/C7/C10 |
| Preload Grade | P0/P1/P2/P3/P4 |
| Maximum Shaft Length | 6000mm (Customizable) |
| Thread Direction | Right Hand (Left Hand Optional) |
| Transmission Efficiency | ≥90% |
General Specifications – DLY 32mm Ball Screws
| Series | Models / Leads | Notes |
| SFU | SFU3205, SFU3206, SFU3210 | Standard ball screw, high precision |
| DFU | DFU3205, DFU3210 | Double nut, preloaded version available |
| SFI | SFI3205, SFI3210 | High-speed, low-noise design |
| DFI | DFI3205, DFI3210 | Double nut, fine pitch options |
| SCI | SCI3205, SCI3210 | High rigidity, smooth motion |
| SCM | SCM3205, SCM3210 | Medium load capacity |
| SFE | SFE3232, SFE3264 | Special long lead versions |
| SFA | SFA3205, SFA3210, SFA3220, SFA3232 | Preloaded, anti-backlash design |
Notes:Lead options included in model number (e.g., 05 → 5mm, 06 → 6mm, 10 → 10mm, 20 → 20mm, 32 → 32mm, 64 → 64mm)
Technical Parameters – DLY 32mm Ball Screws
| Model | Lead (mm) | Ball Diameter (mm) | Dynamic Load (kgf) | Static Load (kgf) | Rigidity(kgf/μm) |
| SFU3205 | 5 | 3.175 | 1450 | 4150 | 40 |
| SFU3206 | 6 | 3.175 | 1720 | 4298 | 43 |
| SFU3210 | 10 | 6.350 | 3390 | 7170 | 45 |
| DFU3205 | 5 | 3.175 | 1450 | 4150 | 82 |
|
|
10 | 6.350 | 3390 | 7170 | 86 |
| SFI3205 | 5 | 3.175 | 1450 | 4150 | 40 |
| SFI3210 | 10 | 6.350 | 3390 | 7170 | 45 |
| DFI3205 | 5 | 3.175 | 1450 | 4150 | 72 |
| DFI3210 | 10 | 6.350 | 3390 | 7170 | 85 |
| SCI3205 | 5 | 3.175 | 1450 | 4150 | 40 |
| SCI3210 | 10 | 6.350 | 3390 | 7170 | 40 |
| SCM3205 | 5 | 3.175 | 1400 | 4080 | 41 |
| SCM3210 | 10 | 6.350 | 3340 | 7080 | 45 |
| SFE3232 | 32 | 4.762 | 2140/3890 | 5260/10500 | 40/76 |
| SFE3264 | 64 | 4.762 | 1000/2000 | 2130/4260 | 40/77 |
| SFA3205 | 5 | 3.175 | 1839 | 6026 | 51 |
| SFA3210 | 10 | 3.969 | 2460 | 7255 | 55 |
| SFA3220 | 20 | 3.969 | 1907 | 5482 | 43 |
| SFA3232 | 32 | 3.969 | 1257/1838 | 3426/5329 | 27/42 |
Installation & Matching Components

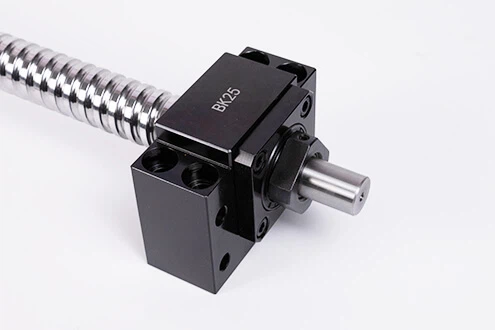

Standard 32mm Ball Screw Support Units
- Compatible with BK25/BF25, EK25/EF25 standard support units
- Pre-assembled angular contact ball bearings, easy to install
- Provides stable support for the screw shaft, reducing vibration during high-speed operation

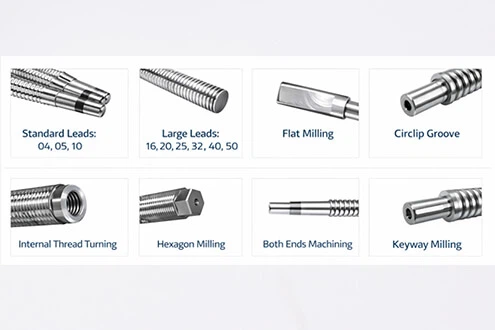

Custom End Machining
- We provide custom end machining service according to your requirements
- Support various motor connection methods, including coupling connection, belt drive connection
- Custom shaft length, thread length, and shaft end shape to fit your machine design

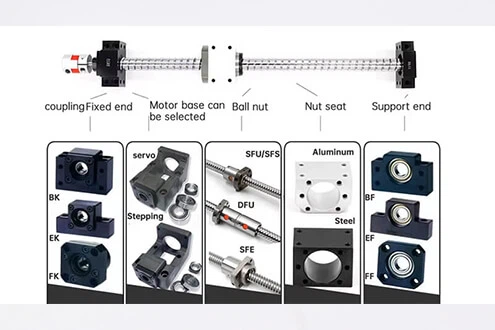

Complete 32mm Ball Screw Kit Option
We offer complete ball screw kits including:
- 32mm ball screw shaft
- Ball nut with dust-proof seal
- BK/BF support units
- Coupling
- All necessary installation accessories
Customization Service
We understand that different applications have different requirements. We provide flexible customization services:
- Custom shaft length: up to 6000mm, to meet different stroke requirements
- Custom lead: special lead can be customized according to your speed and precision needs
- Custom nut type: various nut types to fit your installation space
- Special material: stainless steel option for corrosive environment
- Special surface treatment: black oxidation, plating, etc.
Quality Assurance & After-sales Service
- Strict Inspection: Each product undergoes strict precision inspection before delivery, with full inspection report provided.
- Warranty: 12 months warranty for all standard products, free replacement or repair for quality problems.
- Technical Support: Professional technical team provides installation guidance and application solution consultation.
- Fast Delivery: Large inventory of standard models, 3-7 days delivery for standard products, 15-20 days for customized products.
If you have any questions about our 32mm ball screw products, please feel free to contact our sales team. We will provide you with the most suitable solution for your application!
