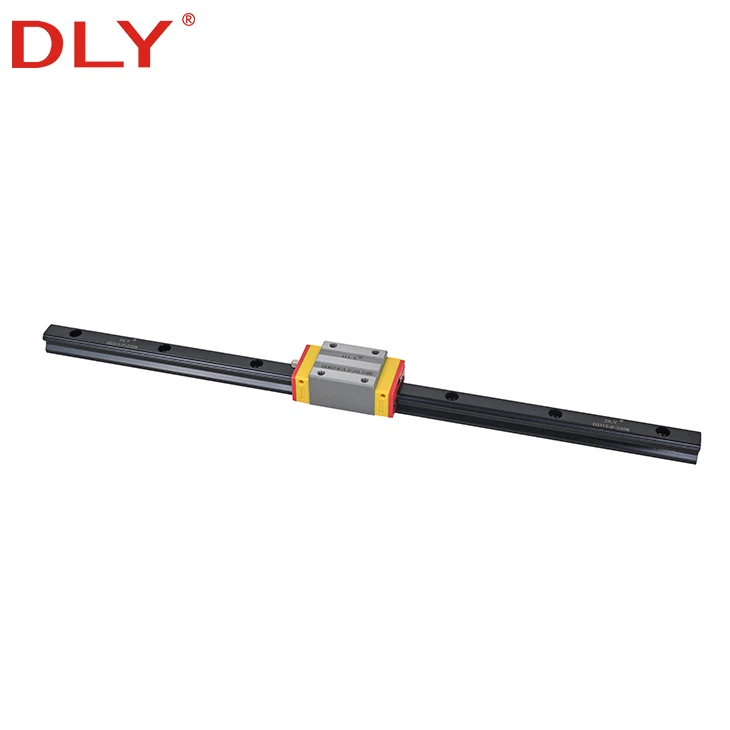

Precision Guide Rails for High-Accuracy Linear Motion
DLY Precision Guide Rails are designed for linear motion systems that require higher positioning accuracy, smoother travel, better straightness, and more stable repeatability than general-purpose guide rail assemblies. They are suitable for CNC machines, automated equipment, precision inspection devices, laser processing equipment, and other machines where rail accuracy directly affects the final motion performance.
These precision linear guide rails are available in P, SP, and UP accuracy grades. They can be supplied with matching guide blocks, custom rail lengths, CAD drawings, and technical confirmation according to the machine structure, load direction, installation surface, and required motion accuracy.
What Makes Precision Guide Rails Different?
A precision guide rail is not only a rail with a smoother surface. Its value comes from the combined control of rail straightness, raceway grinding quality, rail-to-block matching, running parallelism, preload, and installation accuracy. In a machine tool or automation axis, even a small error in rail straightness or mounting alignment can affect positioning accuracy, vibration, noise, and service life.
DLY precision guide rails are manufactured for applications where motion quality needs to remain stable under repeated movement. The rails are hardened and precision ground, while the matching guide blocks support smooth rolling contact, load capacity, and controlled clearance. For applications with higher rigidity requirements, preload and block type should be confirmed together with the rail accuracy grade.
| Selection Point | What It Affects | Recommended Confirmation |
|---|---|---|
| Accuracy grade | Positioning accuracy, straightness, parallelism, repeatability | Choose P, SP, or UP according to machine accuracy requirement |
| Rail size | Load capacity, rigidity, installation space, bolt size | Confirm rail width, rail height, hole pitch, and total length |
| Guide block type | Moment load, mounting height, table stability, space layout | Match standard, short, long, or heavy load block according to structure |
| Preload | Rigidity, vibration resistance, running resistance, service life | Use suitable preload instead of simply choosing the highest preload |
| Mounting surface | Final installed accuracy and smoothness | Check flatness, shoulder reference, bolt torque, and rail parallelism |
Accuracy Grades: P, SP, and UP
Precision guide rails are available in different accuracy grades because not every machine needs the same level of rail precision. P grade is commonly used for equipment that requires better motion accuracy than standard guide rails. SP and UP grades are selected for applications with stricter requirements on straightness, parallelism, positioning accuracy, and repeatability.
When selecting the grade, it is important to consider the full motion system rather than the rail alone. A high-accuracy rail cannot deliver its rated performance if the mounting surface is not flat, the rail pair is not aligned correctly, or the machine base lacks rigidity. For this reason, DLY can support technical confirmation based on drawings, rail length, block quantity, load direction, and installation method.
| Accuracy Grade | Typical Use | Application Example |
|---|---|---|
| P | Precision automation and machine axes requiring stable linear motion | CNC auxiliary axes, automated production equipment, measuring fixtures |
| SP | Higher-accuracy systems requiring better straightness and repeatability | Precision machine tools, laser equipment, inspection systems |
| UP | High-end precision equipment with strict motion and alignment requirements | High-precision positioning platforms and advanced industrial equipment |
Technical Specifications
DLY precision guide rails are supplied according to the selected rail series, rail size, guide block type, accuracy grade, preload requirement, and rail length. The specification below provides a practical reference for product confirmation.
| Product Type | Precision linear guide rail with matching linear guide block |
| Accuracy Grade | P / SP / UP |
| Rail Material | S55C carbon steel, hardened |
| Hardness | HRC 58–62 |
| Surface Treatment | Precision ground surface; anti-rust treatment available according to order requirements |
| Mounting Method | Top mounting with counterbored mounting holes |
| Compatible Blocks | Standard, short, long, and heavy load guide blocks |
| Operating Temperature | -20°C to +80°C under suitable lubrication and working conditions |
| Customization | Custom rail length, block matching, preload confirmation, CAD drawing support, OEM/ODM order support |
Smooth Motion, Rigidity, and Load Stability
Precision guide rails work together with the guide block to support load, control motion direction, and maintain smooth rolling movement. The raceway profile, ball circulation design, block rigidity, and preload all influence how the rail behaves under axial load, radial load, lateral load, and moment load.
For equipment with frequent acceleration, deceleration, or repeated positioning, the rail and block should be selected as a complete linear guideway set. A longer block or multiple blocks can improve moment load capacity, while suitable preload can improve rigidity and reduce clearance. However, excessive preload may increase running resistance and shorten service life, so the selection should match the real working condition.
The guide block structure, sealing parts, mounting holes, and lubrication interface should be confirmed together with rail size and application environment.
Applications of Precision Guide Rails
Precision guide rails are used in machines where linear motion accuracy is closely related to processing quality, positioning reliability, or inspection repeatability. Compared with ordinary sliding structures, a linear guideway provides lower friction, higher load capacity, and more predictable motion performance.
| Application | Why Precision Rails Are Used | Selection Focus |
|---|---|---|
| CNC machines | Stable positioning, rigidity, and repeatable table movement | Accuracy grade, preload, rail pair parallelism, block quantity |
| Laser cutting and engraving equipment | Smooth high-speed movement and stable path control | Rail straightness, block smoothness, dust protection, lubrication |
| Automation lines | Continuous operation with predictable motion performance | Load capacity, rail length, maintenance access, sealing structure |
| Inspection and measuring equipment | Stable repeatability and controlled linear movement | SP or UP grade, installation surface accuracy, vibration control |
| Robotic and handling systems | Reliable motion under repeated acceleration and load changes | Moment load, block length, rail rigidity, mounting direction |
Installation Matters More for Precision Rails
A precision guide rail can only perform well when it is installed on a qualified mounting surface. The machine base should provide enough rigidity, and the reference shoulder should be clean, straight, and properly machined. During installation, rail parallelism, bolt tightening sequence, and guide block movement should be checked carefully.
For a two-rail system, one rail is usually used as the reference side, while the second rail is aligned according to the table movement and block position. If the rails are forced into position by bolts without proper alignment, the system may feel tight, generate noise, create uneven wear, or lose the expected accuracy.
Installation Checks Before Operation
Confirm that the mounting surface is flat and free from burrs, chips, paint, and local damage. Clean the rail and block before assembly, and avoid knocking the rail raceway or guide block end caps.
Tighten bolts gradually according to the recommended sequence instead of locking one end first. After installation, move the table through the full stroke and check whether the movement remains smooth without sudden resistance.
Lubrication should be added before long-term operation. In environments with dust, chips, coolant, or cutting fluid, protective covers and suitable seals should be considered to reduce contamination entering the guide block.
Custom Rail Length and Block Matching
DLY can supply precision guide rails in standard or custom lengths according to machine layout. For replacement projects, the rail length, mounting hole pitch, rail size, block model, block height, and preload condition should be checked carefully. For new equipment design, rail selection should be confirmed together with load, stroke, speed, installation direction, and required accuracy.
Matching guide blocks are available in different structural types, including standard, short, long, and heavy load designs. The right block type depends on available space, load direction, moment load, table size, and required rigidity. When the machine uses two rails and four blocks, the block arrangement and installation accuracy also influence the final motion result.
Information Needed for Quotation
For fast and accurate quotation, please send the rail model, rail length, block model, block quantity, accuracy grade, preload requirement, and order quantity. If the rail is used for replacement, photos of the rail marking, block marking, and mounting hole layout can help confirm compatibility.
| Information | Example | Why It Is Important |
|---|---|---|
| Rail size | 15, 20, 25, 30, 35, 45, 55, 65 | Determines load capacity, block size, and mounting dimensions |
| Rail length | Custom length according to machine stroke | Affects stroke, hole position, packaging, and shipping |
| Block type and quantity | Standard, short, long, heavy load; 1 rail with 1 or more blocks | Affects rigidity, moment load capacity, and table support |
| Accuracy grade | P / SP / UP | Matches machine accuracy and budget requirements |
| Application details | CNC, laser, automation, inspection, vertical or horizontal axis | Helps confirm preload, sealing, lubrication, and block arrangement |

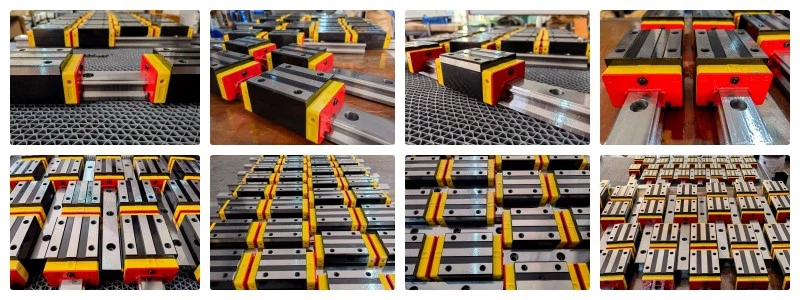

DLY Manufacturing and Quality Control
Zhejiang DLY Automation Manufacturing Co., Ltd. manufactures linear guideways, ball screws, linear shafts, linear bearings, linear modules, ball screw supports, and related linear motion components. For precision guide rails, DLY focuses on stable rail straightness, hardened raceway quality, guide block matching, and inspection before shipment.
DLY supports sample orders, replacement orders, and batch production. For OEM equipment manufacturers, DLY can review drawings, confirm rail and block combinations, provide CAD files, and support customized rail lengths according to project requirements.
Related Linear Guideway Products
Precision guide rails can be selected together with guide blocks, heavy load linear guideways, roller guideways, ball screws, and linear modules according to the complete machine axis design.
FAQ
Q: What is a precision guide rail?
A: A precision guide rail is a linear guide rail manufactured for higher straightness, better running accuracy, and more stable repeatability. It works with a matching guide block to provide smooth linear motion in CNC machines, automation equipment, inspection devices, and other precision systems.
Q: What accuracy grades are available for DLY precision guide rails?
A: DLY precision guide rails are available in P, SP, and UP accuracy grades. P grade is suitable for precision automation and machine axes, while SP and UP grades are used for equipment with stricter requirements for straightness, parallelism, and repeatability.
Q: How should I choose between P, SP, and UP grade?
A: The choice depends on machine accuracy, rail length, installation surface, load, speed, and positioning requirement. P grade is usually enough for many precision automation systems. SP and UP grades are selected when the machine requires higher accuracy and a better-controlled installation environment.
Q: Can DLY provide guide rails with matching blocks?
A: Yes. DLY can supply precision guide rails together with matching guide blocks. Standard, short, long, and heavy load block types can be checked according to rail size, load direction, table structure, and installation space.
Q: Can precision guide rails be cut to custom length?
A: Yes. Custom rail lengths can be supplied according to machine stroke and installation requirements. When ordering custom length rails, please confirm the total rail length, mounting hole pitch, end distance, block quantity, and accuracy grade.
Q: Why does installation affect precision guide rail performance?
A: The final accuracy of a linear guideway depends on both the product and the mounting condition. If the mounting surface is not flat, the rail pair is not parallel, or bolts are tightened unevenly, the system may become tight, noisy, or inaccurate even when the rail itself is high precision.
Q: What information is needed for a quotation?
A: Please send the rail model, rail length, guide block type, block quantity, accuracy grade, preload requirement, quantity, and application details. For replacement projects, photos of the rail and block markings are also helpful.
Contact DLY for Precision Guide Rail Selection
If you need precision guide rails, matching guide blocks, custom rail lengths, or accuracy grade confirmation, send your model number, drawing, rail length, block quantity, accuracy requirement, and application details. DLY will help confirm the suitable linear guideway specification for your equipment.
