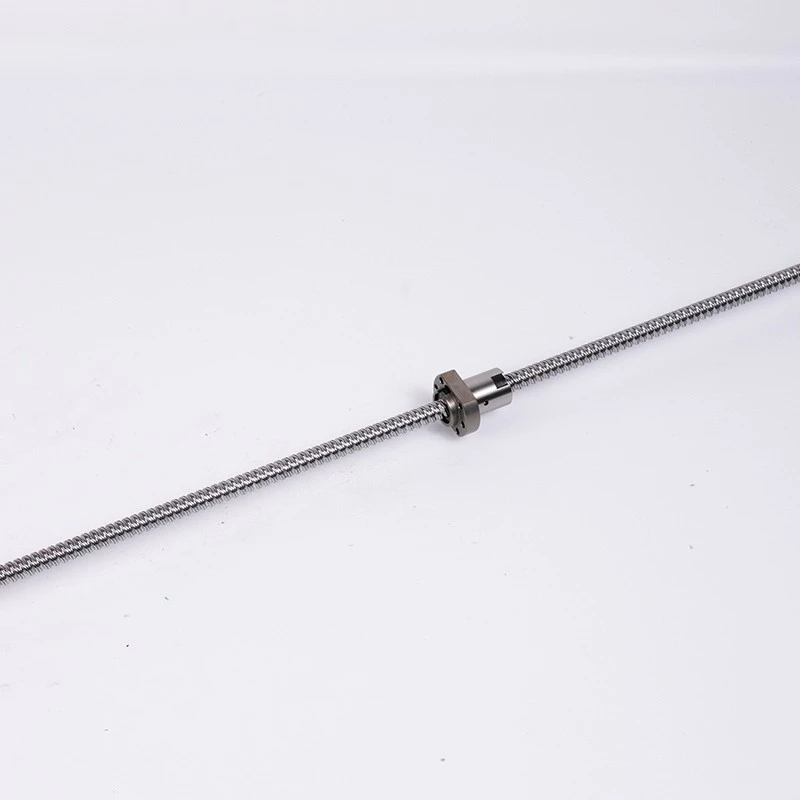

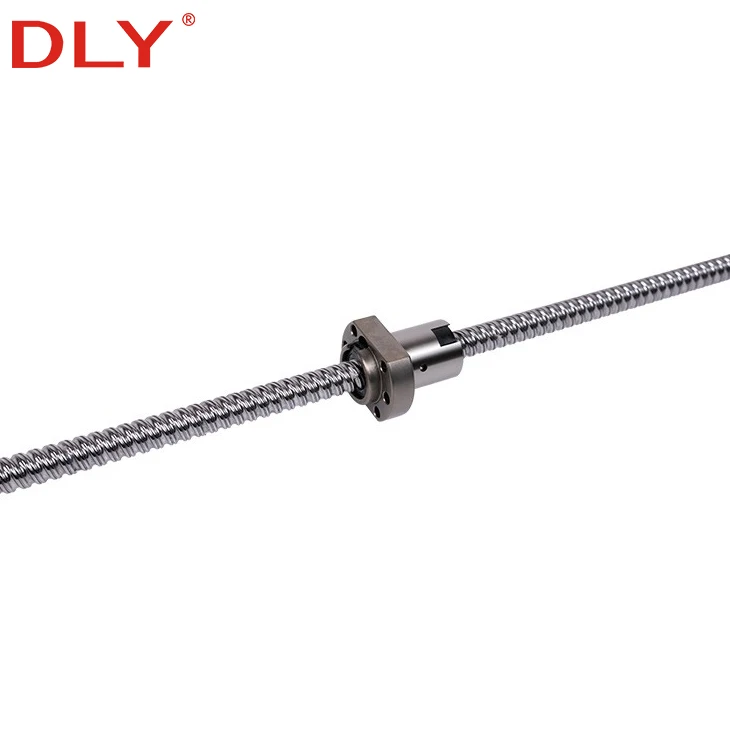

Small Ball Screw for Compact Machines and OEM Linear Motion Systems
DLY small ball screws are made for compact machines where limited installation space, smooth movement, and stable repeat purchasing matter. They are suitable for small automation equipment, 3D printers, laboratory instruments, medical devices, inspection machines, compact actuators, and light-duty precision motion systems.
For buyers who need small diameter ball screws in regular quantities, DLY can support model confirmation, stable supply, end machining communication, and export packaging. Send us your diameter, lead, length, nut type, and quantity, and we will help check the suitable small ball screw model for your equipment.
Why Buyers Choose DLY Small Ball Screws
Small ball screw buyers usually care about more than one piece of sample. They need stable dimensions, smooth running, practical model advice, and reliable repeat supply. DLY focuses on helping B2B buyers reduce wrong-model purchases and keep small motion parts sourcing simple.
Compact Size Matching
We help buyers check whether the screw diameter, nut body, and end machining can fit the limited machine space.
Stable Repeat Supply
Suitable for distributors, OEM factories, equipment builders, and buyers who need repeated small ball screw orders.
Factory Communication
You can send model, quantity, drawing, or old sample photo directly for faster confirmation.
Small Ball Screw Models DLY Can Support
The following model ranges are commonly used in compact linear motion systems. Final selection should be confirmed by installation space, required stroke, load, nut size, and end machining requirements.
| Model Range | Buyer Value | Suitable Purchasing Scenario | DLY Suggestion |
|---|---|---|---|
| 0802 / 0804 | Very compact and suitable for short travel mechanisms. | Micro adjustment devices, compact instruments, small actuators. | Send nut space and support bearing position before ordering. |
| 1002 / 1004 | Small size with better rigidity than 8mm screws. | Testing equipment, laboratory devices, compact automation axes. | Good for buyers who need compact size and more stable motion. |
| 1204 / 1205 | Balanced small diameter and practical load ability. | 3D printers, small linear modules, inspection equipment. | Suitable for regular B2B stock and repeated equipment production. |
| 1605 / 1610 | Stronger compact option for slightly larger mechanisms. | Light CNC equipment, compact automation, small motion platforms. | Check nut size and mounting space carefully before choosing 16mm diameter. |
Built for Compact Equipment Buyers
Small ball screws are often used in equipment where there is no extra room for oversized components. DLY helps buyers confirm the parts that affect real installation, so the ordered ball screw is easier to assemble into the machine.
Nut Space
The nut body is often the largest part of a small ball screw assembly. DLY can help check whether the nut type is suitable.
End Space

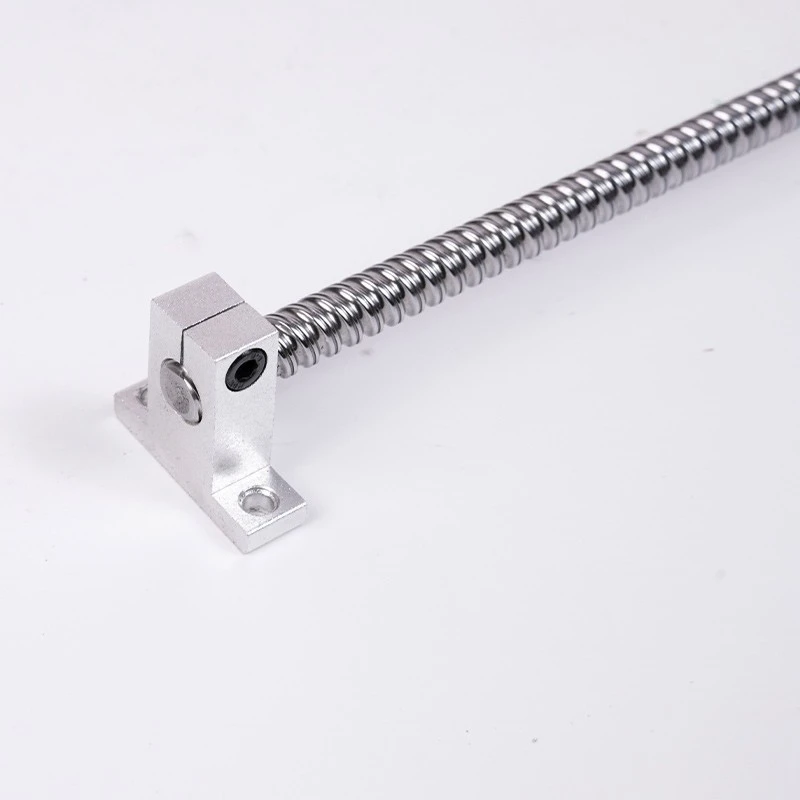

Bearing seat, thread, and coupling position should be confirmed before production or batch purchasing.
Effective Stroke
DLY can help buyers distinguish total length, thread length, reserved end length, and real usable travel.
Batch Consistency
For OEM and distributor orders, stable model and size consistency are more important than one-time sample supply.
Application Areas for DLY Small Ball Screws
This product page is focused on small-diameter ball screws for compact and light-load equipment. If your project requires heavy load, large lead, or full assembly kits, other DLY ball screw pages may be more suitable.
3D Printer Z Axis
Compact ball screws are suitable for stable lifting and fine movement in small 3D printer structures.
Laboratory Instruments
Used in sample movement, measuring platforms, and small adjustment mechanisms.
Medical and Inspection Equipment
Suitable for light-load positioning where compact size and smooth movement are required.
Small Automation Modules
Used in pushing, lifting, feeding, adjusting, and positioning mechanisms in compact machines.
What DLY Checks Before Quotation
To avoid wrong orders, DLY recommends sending the key information below. This is especially helpful when the buyer needs a small ball screw for compact equipment, OEM production, or replacement.
| Information | What to Send | DLY Will Help Check |
|---|---|---|
| Basic Model | 1204, 1605, or your required size. | Diameter, lead, nut type, and model availability. |
| Length Requirement | Total length, thread length, effective travel. | Whether the travel stroke is enough after nut and end machining are included. |
| Installation Space | Nut space, bearing space, motor connection space. | Whether the small ball screw can fit into your compact machine. |
| Order Type | Sample, batch order, distributor stock, OEM production. | Price, packaging, communication priority, and supply plan. |
| Photos or Drawings | Old screw photo, nut photo, end machining drawing. | Replacement direction and machining details. |
Different Buyers, Different Purchasing Needs
For OEM Equipment Manufacturers
DLY can help confirm stable models for repeated use in compact equipment production.
For Distributors
Common small ball screw models can support regular resale, small batch stock, and repeat orders.
For Repair Buyers
Old screw photos, nut photos, and simple measurements can help DLY check replacement direction.
For Small Machine Builders
DLY can support communication around compact installation, model matching, and batch purchasing.
Why Place Small Ball Screw Orders with DLY?
Small ball screw orders often look simple, but wrong nut size, wrong end length, or unclear travel stroke can cause installation problems. DLY combines factory supply with practical communication, helping buyers confirm details before ordering.
- Factory direct supply for small diameter ball screws and linear motion parts.
- Support for regular small ball screw models used in compact machines.
- Help buyers check nut space, travel stroke, and installation details before order confirmation.
- Suitable for OEM manufacturers, distributors, repair buyers, and small automation builders.
- Export communication support through email and WhatsApp for overseas B2B buyers.
FAQ About Buying Small Ball Screws from DLY
1. Can DLY supply small ball screws for OEM equipment?
Yes. DLY supports small ball screw supply for OEM compact equipment, small automation devices, laboratory instruments, inspection machines, and related linear motion systems.
2. What small ball screw models can I ask for?
You can send models such as 1204, 1205, 1605, or your required diameter and lead. DLY will help confirm whether the model is suitable for your machine.
3. What if I do not know the exact model?
You can send old screw photos, measured diameter, lead, total length, thread length, nut photo, and installation space. DLY can help check the possible replacement direction.
4. Is a small ball screw suitable for high load?
Small ball screws are mainly used for compact and light-to-medium load mechanisms. For heavy load applications, larger diameter or heavy duty ball screws are more suitable.
5. How can I get a faster quotation?
Please send model, quantity, length, lead, nut type, end machining drawing, application, and whether this is a sample order or regular batch order.
Get Small Ball Screw Price from DLY
Send us your small ball screw model, diameter, lead, length, nut type, quantity, and application. DLY will help you confirm the suitable model and quotation for compact equipment, OEM production, distributor stock, or replacement order.
