DLY SFU2010 Ball Screw Description
20mm Diameter, 10mm Lead - Precision Ball Screw for CNC and Automation Axes
The SFU2010 is a single-nut, flanged ball screw with a 20mm nominal shaft diameter and 10mm lead. It is commonly specified in CNC routing, laser cutting, and general automation axes where a larger lead is needed for higher linear speed at a given motor RPM, compared to the 5mm-lead SFU2005 in the same diameter.
Understanding the SFU2010 Designation
The model number follows the standard SFU naming convention: the first two digits indicate the nominal shaft diameter, and the last two digits indicate the lead.
SFU 20 10 = 20mm diameter + 10mm lead
A 10mm lead means the nut travels 10mm along the shaft for every full revolution of the screw - twice the linear travel per revolution compared to the 5mm-lead SFU2005 at the same diameter. This makes SFU2010 the better choice when axis speed is the priority and the application load falls within its rated capacity.
| Item | SFU2010 Ball Screw |
| Model | SFU2010 / 2010 Ball Screw |
| Nominal Diameter | 20mm |
| Lead | 10mm |
| Accuracy Grade | C7 Rolled / C5 Ground Available |
| Screw Shaft Material | S55C Steel |
| Nut Material | 20CrMo |
| Hardness | HRC58–62 |
| Nut Type | Flange Ball Nut |
| Dynamic Load Rating | 830 kgf |
| Static Load Rating | 1680 kgf |
SFU2010 Ball Screw – Technical Specifications
| Parameter | Value |
|---|---|
| Shaft diameter (d) | 20mm |
| Lead (l) | 10mm |
| Ball diameter (Da) | 3.175mm |
| Number of circuits (N) | 3 |
| Flange outer diameter (D) | 36mm |
| Flange bolt circle (A) | 58mm |
| Flange thickness (B) | 10mm |
| Nut length (L) | 47mm |
| Nut width (W) | 47mm |
| Nut height (H) | 44mm |
| Mounting hole thread (Q) | M6 |
| Dynamic load rating (Ca) | 830 kgf |
| Static load rating (Coa) | 1,680 kgf |
| Axial stiffness (K) | 20 kgf/μm |

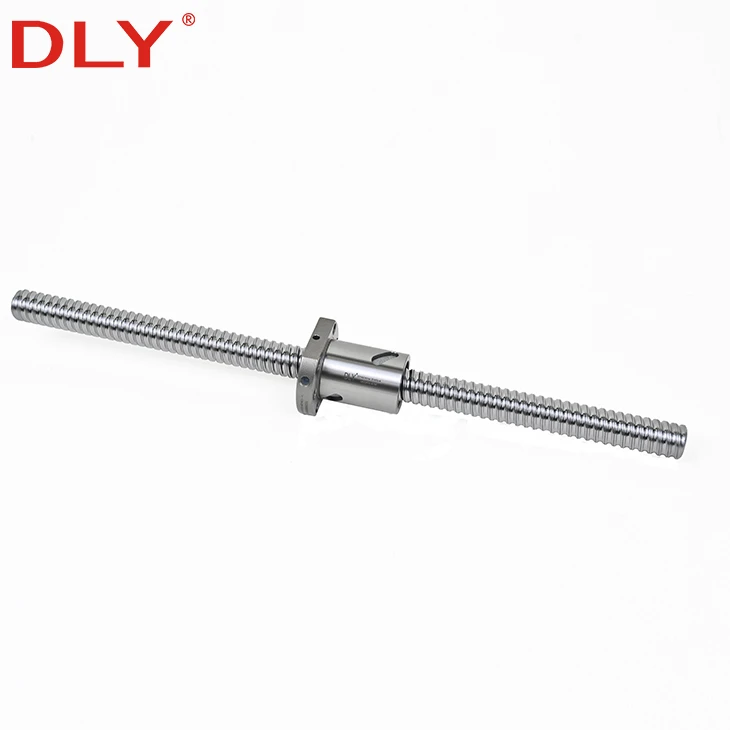

SFU2010 Ball Screw and Nut
The DLY SFU2010 Ball Screw is manufactured using cold-rolled technology for C7 and C10 precision grades, and ground technology for C5 precision grade. The length is customizable, with a typical maximum of 4000mm.
The end machining options are also customizable, including:
- Threaded ends
- Keyed ends
- Plain ends for coupling
- Flanged ends
DLY SFU2010 ball screw nut is crafted from high-quality 20CrMo steel, boasting excellent wear resistance and mechanical strength for long-lasting reliability.
Preload levels are fully customizable-we accommodate customer samples for precise setup or provide custom samples for confirmation.
Additionally, laser marking is available: choose to print our brand logo, product model, or your company logo as required. Tailored to your unique needs, our nuts deliver both performance and brand alignment.
Applications of SFU2010 Ball Screw
Used for fast X/Y/Z axis movement in woodworking, engraving and furniture processing equipment.
CNC Router Machines
Suitable for medium-load linear transmission where travel speed and stable operation are required.
Laser and Plasma Cutting
Applied in conveying, positioning and material handling equipment.
Automatic Feeding Systems
Supports efficient linear movement in repetitive automation cycles.
Packaging Machinery
Can be matched with guide rails, supports and couplings for complete motion systems.
Industrial Linear Modules
The 10mm lead helps improve travel efficiency for longer stroke applications.
Long Travel Axes
For applications requiring higher load capacity at the same 20mm diameter, see SFU2005-4 (5mm lead, 1,130 kgf Ca). If your application requires zero backlash at direction reversal - important for precision CNC machining or applications with frequent direction changes - consider the DFU double-nut series in a comparable diameter.
Get Wholesale SFU2010 Ball Screw Price
How SFU2010 Compares to Other 20mm Diameter Options
When specifying a 20mm diameter ball screw, the choice between a 5mm and 10mm lead depends on whether your axis prioritizes thrust or speed:
| Model | Diameter | Lead | Ca (kgf) | Coa (kgf) | Stiffness K (kgf/μm) | Best suited for |
|---|---|---|---|---|---|---|
| SFU2005-3 | 20mm | 5mm | 860 | 1,710 | 22 | Lighter duty, 5mm lead |
| SFU2005-4 | 20mm | 5mm | 1,130 | 2,380 | 25 | Higher thrust, standard duty |
| SFU2010-3/2 | 20mm | 10mm | 830 | 1,680 | 20 | Higher speed, moderate duty |
At the same 20mm shaft diameter, SFU2010-3/2 has a lower dynamic load rating (830 kgf) than SFU2005-4 (1,130 kgf). This reflects the difference in circuit configuration between the two leads - for applications where load capacity is the priority within the 20mm diameter range, SFU2005-4 provides higher Ca. For applications where rapid traverse speed is the priority and the load falls within SFU2010's rated capacity, the larger lead delivers double the linear speed for the same motor RPM.
Selection guidance: If your application needs maximum thrust or load capacity at 20mm diameter, specify SFU2005-4. If your application prioritizes faster linear speed and the load is within 830 kgf dynamic rating with an adequate safety margin, SFU2010-3/2 is the appropriate choice.
