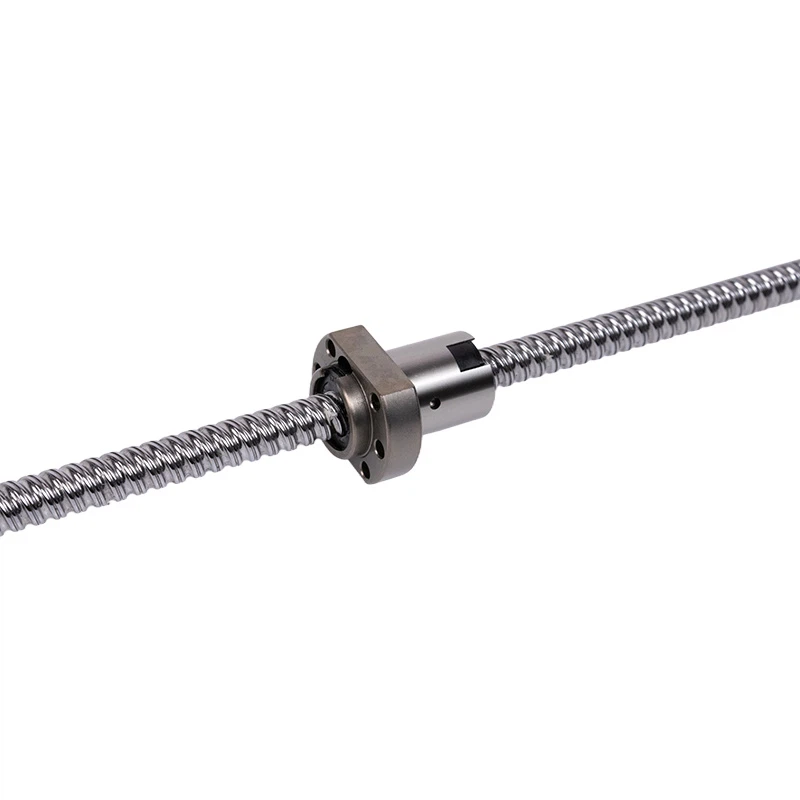

Mini Mill Ball Screw for Benchtop CNC Conversion and Precision Feed
A mini mill ball screw is used to upgrade or replace the feed screw system in small milling machines, benchtop mills, desktop CNC machines and compact machining equipment. Compared with ordinary lead screws, ball screws can reduce backlash, improve repeat positioning, and help the X, Y and Z axes move more smoothly during CNC conversion or machine repair.
DLY supplies mini mill ball screws for machine builders, CNC retrofit users, repair buyers and distributors. We can help confirm suitable diameter, lead, total length, thread length, nut style and end machining according to your mini mill structure, original screw sample or axis drawing.
What Is a Mini Mill Ball Screw?
A mini mill ball screw is a compact ball screw used in small milling machines and benchtop CNC equipment. Its main function is to convert motor rotation into accurate linear movement of the machine table, saddle, or spindle head.
In many mini mill conversion projects, the original lead screw may create noticeable backlash after long use. Replacing it with a properly selected ball screw can make the axis movement smoother and more predictable. However, the ball screw must match the limited space, travel stroke, mounting position and motor connection of the mini mill.
Reduces Axis Backlash
A suitable ball screw helps reduce lost motion when the axis reverses direction during milling or positioning.
Improves CNC Conversion
Ball screws are commonly used when converting a manual mini mill into a CNC-controlled machine.
Fits Compact Machines
Mini mills usually have limited space, so diameter, nut size and end machining must be checked carefully.
Mini Mill Ball Screw Selection by Axis
A mini mill does not always use the same ball screw on every axis. The X and Y axes usually move the table or saddle horizontally, while the Z axis may carry the spindle head or lifting structure. This means load direction, available space, and lead selection should be checked separately.
| Mini Mill Axis | Main Requirement | Ball Screw Selection Focus | Buyer Note |
|---|---|---|---|
| X Axis | Table left-right movement | Check travel length, nut clearance, end machining and support position. | Often the longest axis in a mini mill conversion. |
| Y Axis | Table forward-back movement | Focus on compact nut size and available space under the table. | Space is often tighter than X axis. |
| Z Axis | Head lifting or vertical feed | Check vertical load, lead, motor holding torque and anti-drop design. | Large lead may not be suitable if holding force is limited. |
Common Mini Mill Ball Screw Sizes
Mini mill ball screw size depends on machine model, available installation space and axis load. Small machines may use compact ball screws, while stronger benchtop mills may need larger diameters for better rigidity. The final size should be checked according to the actual machine drawing or original screw dimensions.
| Ball Screw Size | Motion Character | Possible Mini Mill Use | Selection Reminder |
|---|---|---|---|
| 1204 / 1205 | Compact size, fine feed control | Small desktop mills, light-duty axis retrofit | Good for limited space, but load capacity should be checked. |
| 1605 | Balanced rigidity and precision feed | Common mini mill X/Y/Z conversion choice | Often selected when space allows a 16mm screw. |
| 1610 | Faster movement than 1605 | Light-load axis needing faster travel | Motor torque and axis load must be confirmed. |
| 2005 | Stronger rigidity, larger size | Larger benchtop mills or heavier axis structures | Check whether the machine has enough nut and support space. |
Why Backlash Matters in Mini Mill Conversion
Backlash is one of the most common reasons mini mill users upgrade to ball screws. When the axis changes direction, the machine may lose a small amount of motion before the table actually moves. In manual milling this may be compensated by the operator, but in CNC operation it can affect hole position, contour accuracy and repeated passes.
A ball screw can reduce backlash compared with many worn lead screw systems, but the result also depends on nut clearance, bearing support, coupling alignment, machine frame rigidity and controller setup. For higher accuracy, the complete axis should be checked together.
Direction Change Accuracy
Lower backlash helps the axis respond more consistently when the toolpath changes direction.
Repeat Positioning
A properly installed ball screw helps the mini mill return to the same position more reliably.
Surface Finish
Stable feed movement can help reduce uneven marks caused by unstable axis motion.
Controller Compensation
Mechanical improvement and software compensation should work together for better CNC results.
Mini Mill Ball Screw End Machining Requirements
For mini mill ball screws, end machining is often the most important part of the order. The screw ends must fit the bearing blocks, motor coupling, handwheel position, lock nut and machine frame. Even if the diameter and lead are correct, the ball screw cannot be installed if the shaft ends do not match.
| End Machining Detail | What to Confirm | Why It Matters |
|---|---|---|
| Bearing Seat Diameter | Diameter and length for support bearing mounting | Wrong bearing seat size can prevent installation or cause loose support. |
| Threaded End | Thread size, thread length and lock nut type | Used for bearing preload, locking and axial positioning. |
| Coupling Diameter | Motor shaft connection size | The screw must match the stepper or servo motor coupling. |
| Keyway or Flat Position | Whether the machine needs keyway, D-flat or special fixing | Useful for handwheel, pulley, coupling or special locking structures. |
What to Measure Before Ordering a Mini Mill Ball Screw
If you are replacing an old mini mill screw or planning a CNC conversion, please measure the original axis carefully. Photos, drawings and old screw dimensions can help DLY confirm the correct replacement direction faster.
| Information | Example | Why DLY Needs It |
|---|---|---|
| Machine Model | Mini mill, benchtop mill, desktop CNC mill | Helps understand machine size and installation space. |
| Axis Position | X axis, Y axis, Z axis | Different axes have different load and space conditions. |
| Screw Size | 1204, 1605, 2005 or measured diameter and lead | Confirms basic ball screw model and movement per rotation. |
| Length Dimensions | Total length, thread length, travel length | Important for stroke and machine fit. |
| End Machining Photo | Bearing seat, thread, coupling end, handwheel end | Helps avoid wrong shaft end design. |
Common Mistakes in Mini Mill Ball Screw Conversion
Mini mill ball screw conversion looks simple, but small space and original machine structure often create problems. Choosing the correct screw size is only one part of the project. Nut clearance, bearing support, motor alignment and mounting space should all be checked.
Only Checking Screw Diameter
The nut body and support bearings may not fit even if the screw diameter looks correct.
Ignoring Z-Axis Holding Force
Vertical axes need attention to motor torque, braking and possible back-driving.
Wrong End Machining
Incorrect bearing seat or coupling diameter can make the screw unusable without rework.
Poor Axis Alignment
Misalignment between screw, nut, guide and motor can create binding, noise and early wear.
Mini Mill Ball Screw for Different Buyers
Mini mill ball screws are purchased by different types of customers. Some buyers need one set for machine conversion, while distributors may need regular compact ball screw sizes for stock and resale.
CNC Conversion Users
Need ball screws matched to X/Y/Z axis dimensions, motor connection and machine travel.
Machine Repair Buyers
Often need replacement based on old screw photos, worn nut dimensions and end machining details.
Machine Builders
Care about stable feed performance, repeat purchase, assembly drawings and matched components.
Distributors
Usually need common compact models, competitive prices, stable packaging and bulk supply.
Why Choose DLY for Mini Mill Ball Screws?
DLY supplies ball screws and linear motion components for CNC machines, mini mills, automation equipment and industrial motion systems. For mini mill buyers, our support focuses on practical model confirmation, compact installation, end machining and replacement matching.
- Support compact ball screw sizes for mini mill CNC conversion and repair.
- Help confirm diameter, lead, nut style, total length and thread length.
- Drawing-based end machining for bearing seats, couplings, handwheel ends and lock nuts.
- Suitable for machine builders, repair buyers, distributors and small CNC projects.
- Factory-direct communication for repeated orders and overseas B2B buyers.
FAQ About Mini Mill Ball Screw
1. Why upgrade a mini mill with ball screws?
Ball screws can help reduce backlash, improve repeat positioning and make CNC-controlled feed movement smoother than many ordinary lead screw systems.
2. What ball screw size is suitable for a mini mill?
Common choices may include compact sizes such as 1204, 1605 or 2005, depending on machine size, available space, load and axis direction.
3. Can DLY machine the ball screw ends for my mini mill?
Yes. DLY can process shaft ends according to bearing support, coupling, handwheel, lock nut or customer drawing requirements.
4. Can I use the same ball screw on X, Y and Z axes?
Not always. X, Y and Z axes have different travel, space and load conditions. The Z axis especially needs attention to load and holding force.
5. What should I send for a mini mill ball screw quote?
Please send the machine model, axis position, old screw photos, diameter, lead, total length, thread length, end machining dimensions and required quantity.
Get Mini Mill Ball Screw Price from DLY
Send us your mini mill model, axis position, required travel, ball screw size, old screw photos and end machining details. DLY will help you check a suitable mini mill ball screw for CNC conversion, repair or batch supply.
