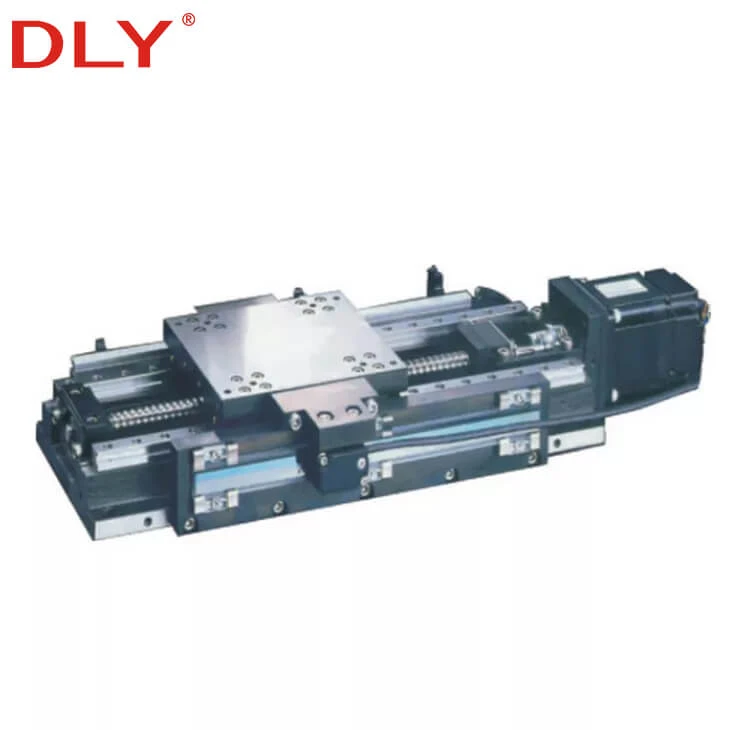

Ball Screw Driven Single Axis Linear Stage
DLY YZH single axis linear stage is designed for precision positioning and controlled linear movement in one direction. It combines a ball screw drive, linear guide support, rigid base structure and moving table to provide stable travel, repeatable motion and convenient installation in automation equipment.
Compared with a simple slide table, this single axis positioning table is more suitable for applications that require accurate stroke control, motorized movement and stable workpiece positioning. It can be used as an independent linear motion unit or integrated into multi-axis equipment according to the machine design.
YZH, YZHT and YZHK structure options are available for different table sizes, mounting layouts and motor installation requirements. The stage can be supplied with or without motor and control system according to customer configuration needs.
Single Axis Positioning Table for Precision Motion
The single axis linear stage converts motor rotation into linear movement through the ball screw. The linear guide rails support the moving table and help maintain smooth motion during travel. This structure is suitable for equipment that requires a compact linear positioning mechanism with defined stroke, mounting holes and motor connection space.
Typical applications include CNC auxiliary positioning, inspection equipment, dispensing systems, laser equipment, assembly machines, measuring devices, laboratory automation and customized motion platforms.
Product Structure and Working Principle
The YZH single axis linear stage is built around a ball screw transmission system. When the motor drives the screw, the nut converts rotary motion into linear motion and moves the table along the guide rails. The guide rails carry the table and help improve movement stability under positioning or feeding conditions.
The table surface includes mounting holes for fixtures, tooling plates or workpieces. The base structure provides installation points for fixing the stage onto the machine frame. The motor-side extension dimension may change according to the selected motor shaft length and installation configuration.
For projects that do not require a complete motorized system, the stage can be supplied without motor and controller. For equipment builders who need a ready-to-integrate motion unit, DLY can also support configuration according to stroke, table size, motor interface and mounting requirements.
YZH, YZHT and YZHK Structure Options
| Structure Type | Description | Suitable Use |
|---|---|---|
| YZH | Standard single axis linear stage with compact table structure and motor-side installation space. | General precision positioning, automation feeding, small and medium workpiece movement. |
| YZHT | Single axis stage structure with different table and mounting layout for customized installation. | Equipment requiring a larger table surface or different fixture arrangement. |
| YZHK | Single axis positioning table option for projects requiring specific mounting configuration. | Customized automation machines, positioning systems and integrated motion platforms. |
Main Features of DLY Single Axis Linear Stage
Ball Screw Drive for Controlled Linear Movement
The ball screw drive provides efficient motion conversion and is suitable for positioning applications that need defined stroke and stable movement. It is a better choice than a simple manual slide when the equipment requires motorized control or repeatable feeding.
Linear Guide Support for Stable Table Travel
The moving table is supported by linear guide rails, helping the stage maintain smoother travel and better guidance during operation. This is important for inspection, assembly, machining assistance and other applications where the table must move along a fixed linear path.
Multiple Stroke and Table Size Options
Standard YZH models cover stroke options from 50 mm to 600 mm. Different base lengths, table dimensions and mounting hole layouts are available, making it easier to match the stage with machine space, fixture size and workpiece travel requirements.
Motor and Control Configuration Flexibility
The stage can be supplied as a mechanical positioning table without motor and control system, or configured according to the user's motor and automation requirements. This gives equipment builders more flexibility when integrating the stage into existing control systems.
Dimension Meaning for Model Selection
The YZH single axis linear stage is selected according to stroke, base length, table width, overall height, mounting thread and installation hole layout. All dimensions below are in millimeters.
| Symbol | Meaning | Selection Use |
|---|---|---|
| S | Stroke / travel distance | Confirms the effective movement range of the stage. |
| *L2 | Motor-side extension length | Changes according to motor shaft length and motor configuration. |
| L1 | Base length | Used to confirm total installation space on the machine frame. |
| C | Base width | Used to match the mounting area and equipment layout. |
| H / H1 / H2 | Overall height and reference heights | Important for installation clearance and motor-side space. |
| C1 / C2 | Table and base reference dimensions | Used for confirming table size and side clearance. |
| B1 / B2 / B | Mounting reference dimensions | Used for fixture, workpiece plate and mounting hole layout. |
| M | Mounting thread | Used for selecting matching bolts and fixture installation. |
| B3 × N | Mounting pitch and quantity | Used to confirm the number and spacing of mounting points. |
| L3 | End-side reference length | Used to confirm end installation and clearance. |
| d × D × h | Counterbore hole size | Used for bolt head clearance and installation matching. |
YZH Single Axis Linear Stage Dimensions
The following standard YZH models are available for common stroke and installation requirements. YZH 400 is available in two size configurations to match different table and base dimensions.
| Type | Stroke | Length | Base | Height | Table Size | Mounting Size | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | *L2 | L1 | C | H | H1 | H2 | C1 | C2 | B1 | B2 | M | B | B3 × N | L3 | d × D × h | |
| YZH 50 | 50 | 75.5 | 200 | 150 | 70 | 36 | 12 | 140 | 154 | 80 | 116 | M6 | 80 | 150 × 1 | 25 | 7 × 12 × 7 |
| YZH 100 | 100 | 75.5 | 250 | 150 | 70 | 36 | 12 | 140 | 154 | 80 | 116 | M6 | 80 | 200 × 1 | 25 | 7 × 12 × 7 |
| YZH 150 | 150 | 75.5 | 300 | 150 | 70 | 36 | 12 | 140 | 154 | 80 | 116 | M6 | 80 | 125 × 2 | 25 | 7 × 12 × 7 |
| YZH 200 | 200 | 25 | 450 | 250 | 92 | 48 | 15 | 240 | 254 | 150 | 202 | M8 | 150 | 200 × 2 | 25 | 9 × 15 × 9 |
| YZH 250 | 250 | 25 | 500 | 250 | 92 | 48 | 15 | 240 | 254 | 150 | 202 | M8 | 150 | 225 × 2 | 25 | 9 × 15 × 9 |
| YZH 300 | 300 | 25 | 550 | 250 | 92 | 48 | 15 | 240 | 254 | 150 | 202 | M8 | 150 | 250 × 2 | 25 | 9 × 15 × 9 |
| YZH 400 | 400 | 25 | 650 | 250 | 92 | 48 | 15 | 240 | 254 | 150 | 202 | M8 | 150 | 300 × 2 | 25 | 9 × 15 × 9 |
| YZH 400 | 400 | 34 | 800 | 400 | 120 | 65 | 20 | 380 | 405 | 260 | 330 | M10 | 260 | 350 × 2 | 50 | 14 × 22 × 13 |
| YZH 500 | 500 | 34 | 900 | 400 | 120 | 65 | 20 | 380 | 405 | 260 | 330 | M10 | 260 | 400 × 2 | 50 | 14 × 22 × 13 |
| YZH 600 | 600 | 34 | 1000 | 400 | 120 | 65 | 20 | 380 | 405 | 260 | 330 | M10 | 260 | 300 × 3 | 50 | 14 × 22 × 13 |
Notes:
1. The dimensions listed above are for standard basic models.
2. The *L2 dimension changes according to motor shaft length. The listed values 75.5, 25 and 34 are configured according to 57BYG, 90BYG and 110BYG stepper motor shaft lengths.
3. The stage can be supplied without motor and control system, or designed according to customer requirements.
How to Select a Single Axis Linear Stage
| Selection Item | What to Confirm | Why It Matters |
|---|---|---|
| Stroke | Choose the required travel distance from 50 mm to 600 mm. | The stroke must cover the working movement while leaving proper end clearance. |
| Table Size | Confirm workpiece size, fixture size and top mounting hole requirements. | The table must provide enough surface and bolt positions for stable installation. |
| Base Length and Width | Check L1 and C according to machine frame space. | The stage should fit the equipment without interfering with nearby parts. |
| Load and Mounting Direction | Confirm horizontal, vertical or side installation and the approximate load. | Different mounting directions affect drive force, support condition and safety margin. |
| Motor Configuration | Confirm stepper motor, servo motor, reducer or mechanical-only supply. | Motor shaft length and interface affect the *L2 dimension and installation design. |
| Accuracy and Speed | Provide positioning accuracy, repeatability and speed requirements if available. | These requirements help confirm the drive, screw lead and overall configuration. |
Applications
DLY ball screw driven single axis linear stages are suitable for machines that require stable one-direction movement and controlled positioning. They can be used in both standalone equipment and integrated automation systems.
| Application Area | Typical Use |
|---|---|
| CNC Equipment | Auxiliary feeding, workpiece positioning, small motion axis and fixture adjustment. |
| Inspection and Measuring Systems | Controlled movement for sensors, cameras, probes or test fixtures. |
| Automation Equipment | Linear feeding, pick-and-place movement, positioning and transfer mechanisms. |
| Laser and Dispensing Equipment | Precise movement of worktables, nozzles, sensors or positioning plates. |
| Laboratory and Custom Devices | Small precision motion platforms for testing, positioning and experimental equipment. |
Customization and Ordering Information
For customized single axis linear stages, please provide the required stroke, table size, mounting direction, load condition, motor type and installation space. If drawings are available, DLY can check the mounting dimensions and recommend a suitable structure.
The stage can be supplied as a mechanical assembly or configured with motor-related requirements. For projects that need special mounting holes, different table layout or integration into a multi-axis system, customization can be discussed according to actual equipment conditions.
| Inquiry Information | Recommended Details |
|---|---|
| Model or Stroke | Example: YZH 200, YZH 500, or required travel distance. |
| Installation Direction | Horizontal, vertical or side installation. |
| Load Condition | Workpiece weight, fixture weight and movement condition. |
| Motor Requirement | Stepper motor, servo motor, motor interface, or mechanical-only supply. |
| Mounting Drawing | Machine space, bottom mounting holes, top fixture holes and special installation limits. |
FAQ
Q: What is a single axis linear stage?
A: A single axis linear stage is a positioning table that moves in one linear direction. It usually includes a drive system, guide support, base and moving table. The YZH series uses a ball screw driven structure for controlled linear movement.
Q: Is this stage driven by a ball screw or belt?
A: The YZH single axis linear stage is a ball screw driven positioning table. It is suitable for applications that need controlled movement and stable positioning rather than simple high-speed transfer only.
Q: Can the stage be supplied without motor?
A: Yes. The stage can be supplied without motor and control system, or configured according to customer requirements. This is useful when the equipment already has its own motor, controller or electrical system.
Q: How do I choose the stroke of a single axis positioning table?
A: The stroke should be selected according to the effective travel required by the machine. It is also important to consider fixture size, end clearance, sensor position, motor-side space and the total installation length of the stage.
Q: What information should be provided for quotation?
A: Please provide stroke, load, mounting direction, table size, motor requirement and installation drawing if available. These details help confirm the suitable model and avoid mismatch in mounting space or motor interface.
Need Help Selecting a Single Axis Linear Stage?
Send your required stroke, table size, load condition and motor configuration. DLY can help confirm a suitable YZH, YZHT or YZHK single axis positioning table for your equipment.
