Ball Screw Driven Linear Actuators for Precision Linear Motion
DLY supplies ball screw linear actuators for automation equipment, CNC machinery, testing systems, packaging machines, robotic positioning and custom industrial motion projects. A ball screw linear actuator converts rotary motion into accurate linear movement through a ball screw, nut, guide rail, bearing support and actuator housing.
Compared with common belt drive actuators or lead screw actuators, a linear actuator with ball screw offers higher efficiency, better load capacity, smoother motion and more stable repeat positioning. For applications that require precision, thrust, rigidity and long service life, a ball screw driven linear actuator is often a better choice.
DLY can provide standard and customized ball screw linear actuators according to stroke length, load, speed, accuracy, installation direction, motor type and working environment.
What Is a Ball Screw Linear Actuator?

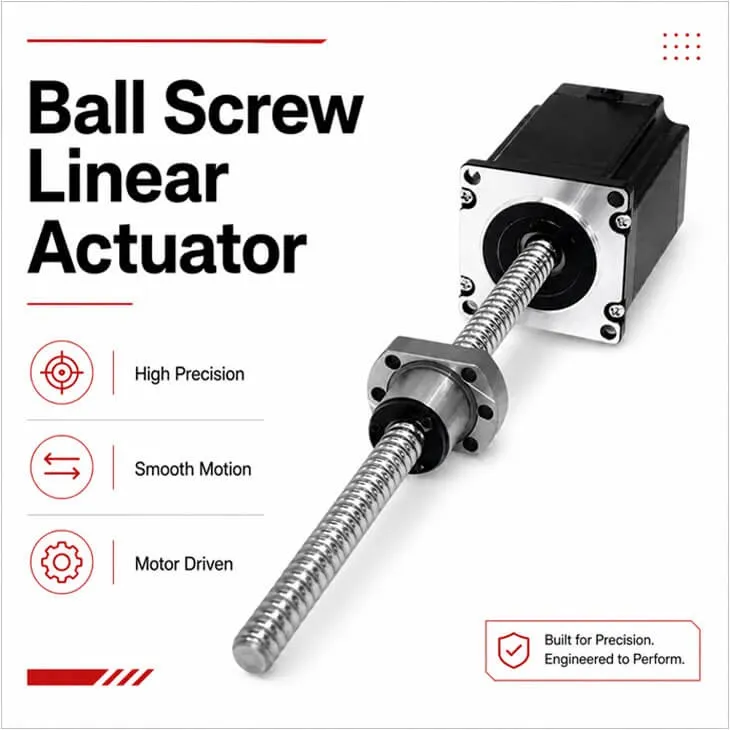

A ball screw linear actuator, also called a linear ball screw actuator or linear actuator ball screw system, is a mechanical motion unit that uses a ball screw and nut assembly to create linear movement.
When the motor rotates the ball screw, the ball screw nut moves along the screw shaft. The nut then drives the carriage, table or connected load in a straight line. Because balls roll between the screw shaft and the nut, friction is much lower than in a normal lead screw mechanism.
Rolling contact reduces friction and helps the actuator run smoothly under repeated motion.
High Efficiency
Suitable for automation systems that need repeatable movement and controlled linear travel.
Stable Positioning
A ball screw linear actuator assembly may include screw, guide rail, support bearing, housing, coupling and motor mount.
Integrated Structure
DLY Ball Screw Linear Actuator Product Categories
Single Axis Ball Screw Linear Actuator
A single axis ball screw linear actuator is used when the machine needs movement in one linear direction. It is commonly used for feeding, pushing, positioning, lifting, dispensing, testing and transferring.
01
Electric Ball Screw Linear Actuator
An electric ball screw linear actuator uses a stepper motor or servo motor to drive the ball screw. It is suitable for controlled position, speed, stroke and repeatability.
02
Ball Screw Linear Actuator with Motor
A ball screw linear actuator with motor can be designed with a stepper motor, servo motor or customer-specified motor. Common options include ball screw stepper motor linear actuator and servo motor ball screw linear actuator.
03
Heavy Duty Ball Screw Linear Actuator
A heavy duty ball screw linear actuator is designed for larger load, stronger thrust, longer stroke or higher rigidity requirements.
04
High Speed Ball Screw Linear Actuator
A high speed ball screw linear actuator is used when the equipment needs faster linear travel while still maintaining good positioning performance.
05
Miniature Ball Screw Linear Actuator
A miniature ball screw linear actuator is used for compact machines where installation space is limited, such as laboratory devices, desktop machines and light-duty positioning modules.
06
Vertical Ball Screw Linear Actuator
A vertical ball screw linear actuator is used for lifting or up-and-down motion. Vertical applications require attention to load safety, motor brake, screw lead and anti-falling design.
07
Custom Ball Screw Linear Actuator
DLY provides custom ball screw linear actuator solutions for OEM customers, equipment manufacturers, distributors and automation project buyers.
08

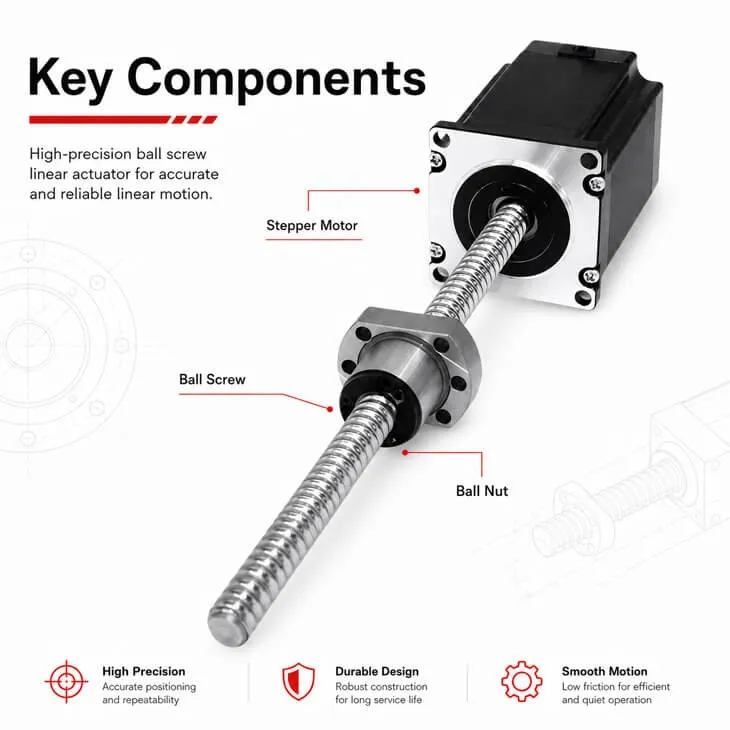

Main Components of a Ball Screw Linear Actuator
Ball Screw and Nut Assembly
The ball screw is the core transmission part of the actuator. It affects speed, thrust, efficiency, accuracy and service life. Common ball screw specifications may include 1204, 1605, 2005, 2510 and other models depending on the load, lead and stroke requirement.
Linear Guide Rail and Slider
A ball screw linear guide stage motion slide actuator usually combines a ball screw with a linear guide rail. The ball screw drives the movement, while the linear guide rail supports the load and controls straight-line accuracy.
Bearing Support and End Support
The bearing support fixes the ball screw and helps maintain axial rigidity. A proper fixed-end and support-end structure can reduce vibration, improve positioning stability and extend service life.
Motor Mount and Coupling
The actuator can be connected with a stepper motor, servo motor or other electric drive. For a ball screw linear actuator with stepper motor, the screw lead and motor torque should be matched carefully.
Actuator Housing and Protective Cover
The housing keeps the actuator structure aligned and protects internal parts. Depending on the working environment, the actuator can be designed as open type, semi-covered type, fully covered type or compact profile type.
How to Choose a Ball Screw Linear Actuator
For example, customers may need a 300mm, 500mm, 800mm or customized stroke linear actuator ball screw solution.
Stroke Length
For heavy load applications, a heavy duty electric ball screw linear actuator may be needed.
Load Capacity
The actuator speed depends on screw lead and motor speed. Larger lead can increase travel speed but requires more torque.
Speed Requirement
The final accuracy depends on the ball screw, guide rail, bearing support, actuator base, assembly and motor control.
Accuracy
Horizontal, vertical and inclined installation require different load and safety checks.
Installation Direction
Dust, chips, coolant, humidity and temperature may affect actuator life and protection design.
Working Environment
Ball Screw Linear Actuator vs Lead Screw Actuator
Many buyers compare linear actuator vs ball screw or ask whether a lead screw actuator is enough. A lead screw actuator is simple and low cost, but it has higher friction and lower efficiency. It is suitable for low-speed, light-duty or cost-sensitive applications.
A ball screw type linear actuator uses rolling contact between the screw and nut, so it provides smoother motion, higher efficiency, lower heat generation and better long-term repeatability. For industrial equipment, repeated positioning, higher thrust and better service life, a ball screw actuator is usually the better choice.
Ball Screw Linear Actuator vs Belt Driven Actuator
A belt driven actuator is suitable for long stroke and high speed light-load movement. However, it may not provide the same rigidity and thrust as a ball screw actuator.
A ball screw driven linear actuator is more suitable for higher thrust, better positioning accuracy, CNC axis movement, vertical lifting, precision feeding, testing equipment and industrial positioning.

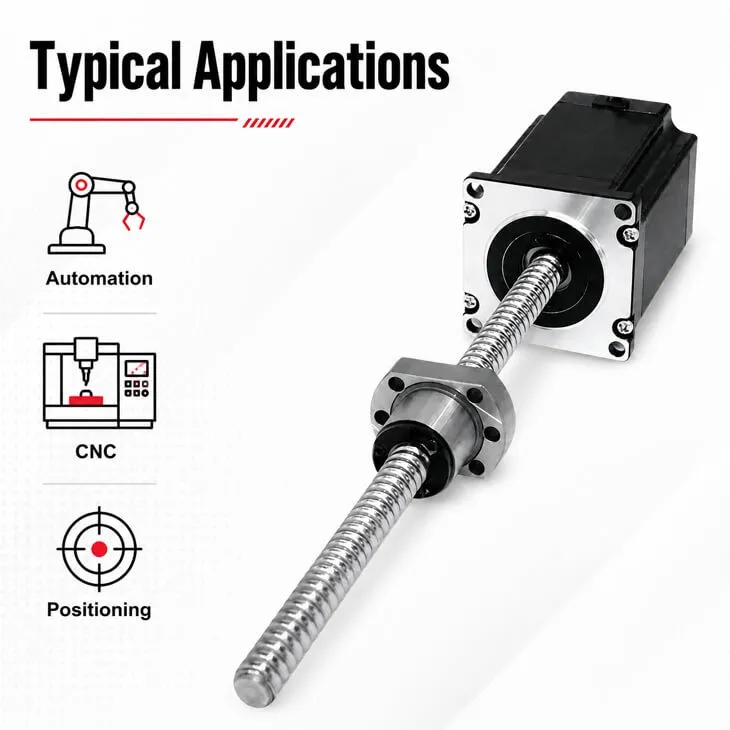

Typical Applications
CNC machinery
Automation equipment
Packaging machines
Testing machines
Inspection systems
Dispensing equipment
Laser machines
Woodworking machinery
Medical equipment
Laboratory automation
- Robotic positioning
- 3D printer Z-axis upgrades
- Vertical lifting systems
- Custom motion platforms
Why Choose DLY as Your Ball Screw Linear Actuator Supplier?
DLY is a linear motion component manufacturer with more than 20 years of production experience. Our main products include ball screws, linear guideways, linear shafts, supported rails and related motion components.
For ball screw linear actuator projects, our advantage is that we understand the key parts inside the actuator, including ball screw, nut, linear guide, end machining, support bearing and assembly structure.
Ball screw linear actuator factory direct supply from China for B2B buyers and distributors.
Factory Supply
Support for OEM ball screw type linear actuator, wholesale projects and customized assemblies.
Custom Support
Practical selection support for ball screw linear actuator components, parts, CAD and quotation needs.
Technical Experience
Custom Ball Screw Linear Actuator Service
DLY can customize ball screw linear actuator assembly according to your drawings, samples or equipment requirements.
| Required Information | Example |
|---|---|
| Stroke length | 300mm, 500mm, 800mm, customized |
| Installation direction | Horizontal, vertical, inclined |
| Load weight | Light load, medium load, heavy load |
| Speed requirement | Low speed, high speed |
| Accuracy requirement | General positioning or precision positioning |
| Motor type | Stepper motor, servo motor, customer motor |
| Ball screw size | 1204, 1605, 2005, customized |
| Working environment | Dust, chips, coolant, clean room |
| Quantity | Sample order or batch order |
| Drawing | CAD drawing, 2D drawing, 3D model, photo |
Ball Screw Linear Actuator Specifications
| Item | Options |
|---|---|
| Product Type | Ball screw linear actuator |
| Drive Type | Ball screw driven linear actuator |
| Guide Type | Linear guide rail / slide guide / custom guide structure |
| Ball Screw Type | Rolled ball screw / customized ball screw |
| Screw Diameter | According to load and stroke |
| Screw Lead | 4mm, 5mm, 10mm or customized |
| Stroke Length | 300mm, 500mm, 800mm or customized |
| Motor Option | Stepper motor / servo motor / motor mounting only |
| Structure Type | Open type / covered type / compact type / heavy duty type |
| Installation Direction | Horizontal / vertical / inclined |
| Application | CNC, automation, testing, packaging, robotics |
| Custom Service | Stroke, lead, end machining, housing, motor mount |
FAQ
Q: What is a ball screw linear actuator?
A: A ball screw linear actuator is a linear motion device that uses a ball screw and nut assembly to convert rotary motion into straight-line movement. It is used for accurate positioning, pushing, lifting, feeding and automation movement.
Q: What is the difference between a ball screw linear actuator and a ball screw assembly?
A: A ball screw assembly usually includes only the screw shaft and nut. A ball screw linear actuator assembly may include the ball screw, guide rail, slider, bearing support, housing, coupling and motor mounting structure.
Q: Can DLY provide a ball screw linear actuator with motor?
A: Yes. DLY can provide actuator structures for stepper motors, servo motors or customer-specified motors. We can customize the motor mounting plate and coupling according to your motor dimensions.
Q: Is a ball screw linear actuator suitable for vertical lifting?
A: Yes. A vertical ball screw linear actuator can be used for lifting, but the load, brake, motor torque, screw lead and safety design must be checked carefully.
Q: Do you offer heavy duty ball screw linear actuators?
A: Yes. DLY can customize heavy duty ball screw linear actuator solutions with larger screw diameter, stronger guide rail, reinforced base and suitable bearing support.
Q: What information should I provide for quotation?
A: Please provide stroke length, load, speed, accuracy requirement, installation direction, motor type, working environment, quantity and drawings if available.
Contact DLY for Ball Screw Linear Actuator Solutions
Looking for a reliable ball screw linear actuator manufacturer or supplier? Send us your stroke length, load requirement, speed, installation direction, motor type and drawing. DLY can help you select or customize a suitable linear actuator ball screw solution for your automation project.
