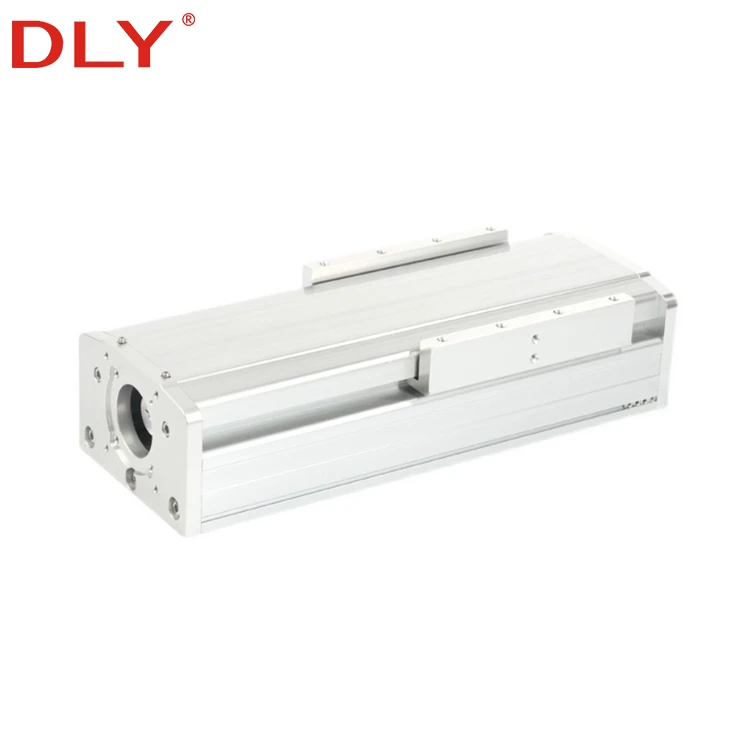

Sealed High precision Linear Module Description
The GF150 Sealed High Precision Linear Module is a heavy-duty linear motion platform designed for applications requiring high load capacity, precision positioning, and protection against dust and water. With a fully sealed structure, dual linear guide rails, and a precision ball screw, the GF150 offers outstanding durability and stability for industrial automation, CNC machinery, and harsh working environments.
Check out our complete collection of Linear Modules in the Linear Module category.

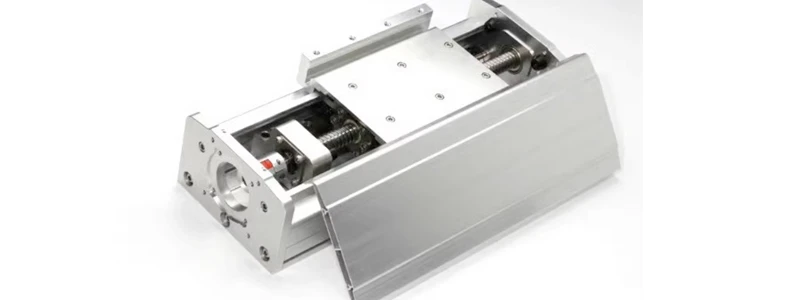

Sealed High precision Linear Module Parameters
- Product Model: GF150
- Product Type: Sealed Dual-Guide Ball Screw Slide Module
- Applicable Stroke: 10-3000mm (Customizable upon request)
- Compatible Flanges: 60/80/90/110/130 Servo Motors, 57/86/110/130 Stepper Motors
- Applicable Screws: 2005/2010/2020/2505/2510/2525
- Screw Accuracy: 0.03mm
- Reference Load: Horizontal 180kg, Vertical 110kg
Sealed High precision Linear Module Size

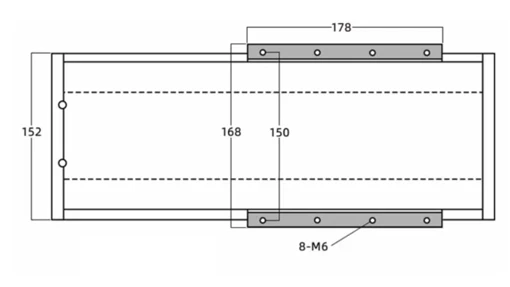

Sealed High precision Linear Module Top View

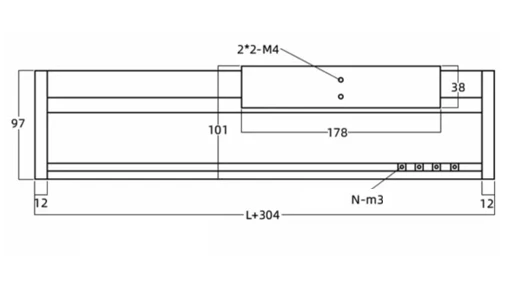

Sealed High precision Linear Module Side View

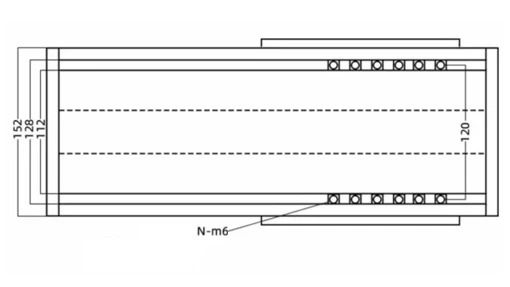

Sealed High precision Linear Module Bottom View
Sealed High precision Linear Module Features
High-precision ball screws
Precision ball screws combined with flanged screw nuts ensure stable and accurate operation under high speeds and heavy loads.
High-precision linear guide sliders
20# Square Rail BlockHigh precision, high stability,smooth operation, wear resistance,and extended service life.
High-quality assembly parts
Parts are made of high-quality 6061 aluminum.
Accessories are imported CNC machined to ensure product precision.
Accessories are anodized for a premium finish.
Slide modules are customizable
Our factory
Slides can be customized.
Slide motor plate stroke and other features can be customized.
3D drawings of the slides are available.
Sliding Nuts for Linear Stage
- The side of the linear stage is equipped by default with M3 or M4 sliding nuts for mounting limit switches or proximity sensors.
- The bottom of the linear stage is equipped by default with M6 sliding nuts for fixing the stage.
Sealed High precision Linear Module Detail
Applications
The GF150 Sealed High Precision Linear Module is widely used in industries that demand heavy-duty performance, precision positioning, and dustproof/waterproof protection. Typical applications include:
- CNC Machinery – precision cutting, milling, engraving, and machining centers.
- Automation Equipment – pick-and-place systems, robotics, assembly lines.
- Packaging Industry – high-speed packaging, sealing, and labeling machines.
- Inspection & Measuring Systems – coordinate measuring machines (CMM), optical inspection devices.
- Electronics Manufacturing – PCB drilling, soldering, component placement.
- Medical & Laboratory Equipment – automated testing platforms, sample handling.
- Woodworking & Stone Processing – precision cutting, carving, and shaping.
- Heavy-Duty Industrial Applications – equipment that requires stable motion under large loads in dusty or humid environments.
FAQ – Sealed High precision Linear Module
FAQ
Q: What is the minimum order quantity (MOQ) for the GF150 linear module?
A: Our MOQ is 1 unit only, making it convenient for testing, prototyping, or small batch orders.
Q: Do you provide warranty for this product?
A: Yes, we offer a 1-year warranty covering manufacturing defects and performance issues.
Q: How long is the delivery time?
A: Standard delivery is 7–30 days, depending on order quantity and customization requirements.
Q: Can the travel stroke be customized?
A: Yes, the stroke length can be tailored from 10mm to 3000mm according to your application needs.
Q: What motors are compatible with the GF150 module?
A: It supports both servo motors (60/80/90/110/130) and stepper motors (57/86/110/130).
Q: Do you offer better prices for bulk orders?
A: Yes, the larger the quantity, the more competitive the price. Contact us for a customized quotation.
Q: Is the GF150 suitable for heavy-duty applications?
A: Absolutely. It can handle 180kg horizontally and 110kg vertically, with a sealed structure for dustproof and waterproof performance.
Q: What ball screw options are available?
A: You can choose from 2005, 2010, 2020, 2505, 2510, and 2525 ball screws, depending on your precision and load requirements.
Q: Can you provide technical drawings and CAD models?
A: Yes, we provide free CAD drawings and technical support to help with design integration.
Q: Do you provide after-sales support?
A: Yes, our professional team offers 7×24h online support for installation, troubleshooting, and technical assistance.
