A linear slider does not control its own deceleration. The deceleration command is generated by a motion controller or PLC and executed by a servo drive, motor and transmission mechanism. The slider provides guidance and load support while the moving table slows down.

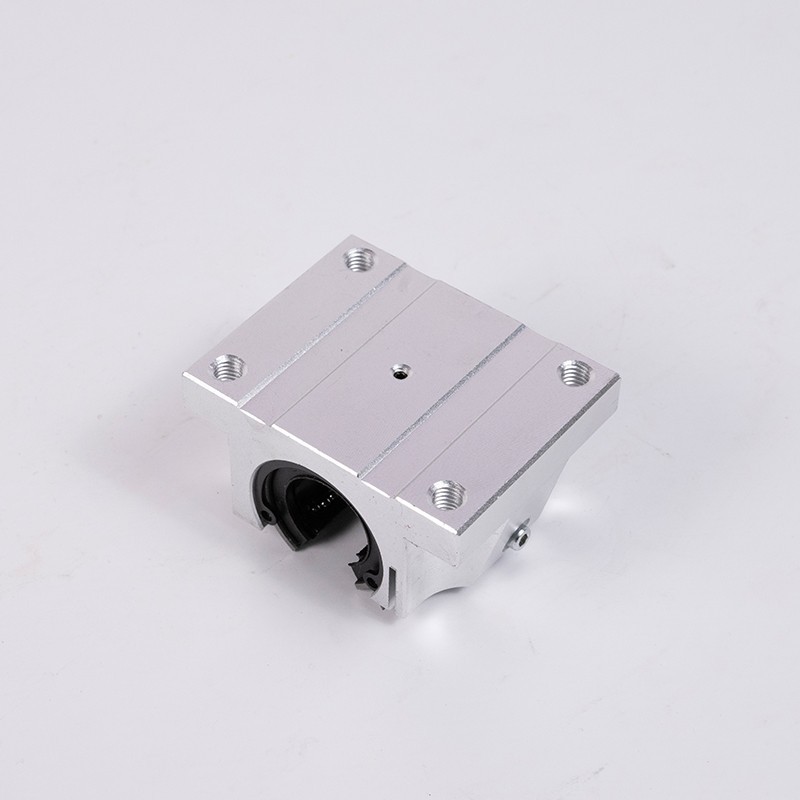

The term linear slider may refer to a profile rail with a matched guide block, or a round shaft with a linear bearing block such as an SCS, SBR or TBR slider unit. Neither structure decides when or how quickly the axis should stop.
In most servo-driven equipment, normal deceleration is controlled with a trapezoidal or S-curve motion profile. The correct profile depends on travel speed, moving mass, available stopping distance, positioning requirements, machine rigidity and the permissible load on the slider, transmission and drive system.
Mechanical stoppers and shock absorbers may provide additional end-of-travel protection, but they should not normally replace controlled deceleration during every production cycle.
What Does a Linear Slider Do During Deceleration?
A linear slider is a passive guiding component. Its primary functions are to constrain the moving table to a defined path, support forces and moments, and maintain stable linear movement.
In a profile-rail system, recirculating balls or rollers move between the guide block and precision-ground raceways. In a round-shaft system, a linear bearing or bearing block travels along a cylindrical shaft. SBR and TBR systems use supported round shafts to improve rigidity compared with a completely unsupported shaft.
Although these structures have different load capacities and rigidity, the control principle is the same: the slider guides the table while other parts of the machine generate the deceleration force.
Which Component Actually Controls Deceleration?
A complete linear motion axis normally contains several components that work together during deceleration.
| Component | Role during deceleration |
|---|---|
| Motion controller or PLC | Generates the velocity, acceleration, deceleration and jerk command |
| Servo drive and motor | Produce the torque required to reduce axis speed |
| Ball screw, belt, rack or linear motor | Transmit the controlled force to the moving table |
| Profile-rail or round-shaft slider | Guides the table and supports forces and moments generated during deceleration |
| Encoder or position sensor | Provides position and speed feedback to the control loop |
| Limit switch and end protection | Protect the mechanism when commanded movement exceeds the normal travel zone |
Changing the linear block, bearing housing or shaft support alone does not create a controlled stopping profile. The motion command and braking force must come from the drive system.
What Is a Trapezoidal Deceleration Profile?
A trapezoidal velocity profile uses approximately constant acceleration, constant velocity and constant deceleration segments. During deceleration, the commanded acceleration changes from zero to a negative value, remains approximately constant and returns to zero when the axis reaches its target position.
This profile is widely used because it is simple and can provide relatively short cycle times. It can work well when the moving load is moderate, the machine structure is rigid and the transmission has limited backlash or elasticity.
The main disadvantage is the rapid change in acceleration at the beginning and end of the ramp. Because jerk is the rate at which acceleration changes, an ideal trapezoidal profile produces high jerk at these transition points.
High jerk can excite vibration in the moving table, workpiece, shaft supports, guide blocks, coupling or machine frame. The axis may reach the commanded position but still require additional settling time before the next operation can begin.
A trapezoidal profile is not necessarily harsh if the programmed deceleration is moderate. Problems usually appear when aggressive settings are combined with a heavy table, flexible structure, long shaft span, large overhang or insufficient slider spacing.
How Does an S-Curve Reduce Mechanical Shock?
An S-curve profile limits how quickly acceleration changes. Instead of applying the full deceleration almost immediately, it progressively increases deceleration, maintains it as required and then progressively returns it to zero.
Jerk is expressed as:
j = da/dt
Where j is jerk in m/s³, a is acceleration or deceleration in m/s², and t is time in seconds.
Limiting jerk reduces abrupt changes in inertial force. This is useful for high-speed automation, inspection equipment, fragile workpieces, liquid handling, tall loads and systems with flexible frames or long overhangs.
Round-shaft systems can also benefit from an S-curve when rapid acceleration changes cause shaft deflection or vibration. This is especially relevant when the shaft has a long unsupported span or when the moving load is positioned far above the shaft centerline.
The trade-off is that an S-curve may require more time or distance than a trapezoidal profile when both are limited to the same peak deceleration. It must therefore be calculated within the available stroke instead of being selected only because it produces smoother motion.
How Do You Calculate Deceleration Time and Stopping Distance?
For an initial calculation with constant deceleration, stopping time can be estimated with:
t = v / a
The corresponding deceleration distance is:
s = v² / (2a)
Here, v is the initial velocity in m/s, a is the magnitude of deceleration in m/s², t is the deceleration time in seconds and s is the distance in meters.
Consider an axis traveling at 1 m/s with a programmed deceleration of 2 m/s²:
t = 1 / 2 = 0.5 s
s = 1² / (2 × 2) = 0.25 m
The theoretical deceleration distance is therefore 250 mm. This calculation does not include controller response delay, sensor delay, drive response, servo following error, mechanical compliance or a design margin.
If the combined response delay before controlled deceleration begins is 30 ms, the moving table travels an additional:
sdelay = v × tdelay = 1 × 0.03 = 0.03 m = 30 mm
The preliminary total has already increased from 250 mm to 280 mm before adding a design margin. An S-curve profile may require additional distance because the full deceleration value is not applied immediately.
How Does Deceleration Affect Slider Load?
Deceleration generates an inertial force proportional to the total moving mass:
F = m × a
If a 100 kg table decelerates at 2 m/s², the ideal inertial force is:
F = 100 × 2 = 200 N
This 200 N does not automatically divide equally among the sliders. The actual load distribution depends on the number of rails or shafts, slider spacing, center-of-gravity position, drive-force position, table rigidity and mounting accuracy.
If the center of gravity is located a vertical distance h above the guiding plane, the inertial force creates a pitching moment:
M = F × h
For the same 200 N force and a center-of-gravity height of 0.30 m, the pitching moment is:
M = 200 × 0.30 = 60 N·m
This moment can load the front and rear sliders very differently. A selection based only on the vertical weight of the table would miss the additional deceleration load.
Profile-Rail Slider Systems
In a profile-rail system, the inertial force and moment must be distributed among the guide blocks according to rail spacing, block spacing and the center-of-gravity position. The calculated loads should be compared with the corresponding block's static load rating and permissible static moments.
A block may have sufficient radial load capacity but still be unsuitable for a large pitching, yawing or rolling moment. Increasing the distance between blocks can often reduce the load caused by a given moment.
Round-Shaft Slider Systems
In a round-shaft system, the same inertial force acts on the linear bearings, aluminum housings, shaft supports and shafts. The system must be checked for bearing load, housing rigidity, shaft bending and support-bolt loading.
An unsupported round shaft may deflect more noticeably during rapid deceleration, especially when its span is long or the load is offset from the shaft centerline. Supported SBR or TBR rails generally provide greater bending rigidity because the shaft is continuously or closely supported along its length.
For both structures, the supplier needs the real moving mass, speed, acceleration, slider spacing and center-of-gravity position. The product name alone is not enough to verify suitability.
Why Does Speed Have a Large Effect on Stopping Requirements?
Kinetic energy increases with the square of velocity:
Ek = ½mv²
Doubling the moving mass doubles the translational kinetic energy. Doubling the speed increases it by a factor of four. A relatively small increase in operating speed can therefore create a much larger demand on the motor, drive, transmission and end-of-travel protection.
For a ball-screw-driven axis, the rotating inertia of the screw, coupling and motor must also be included. A long or large-diameter ball screw can store substantial rotational energy even when the moving table is relatively light.
What Is the Role of Servo Braking and Regeneration?
During controlled deceleration, a servo motor can act as a generator. Energy returned from the motor raises the DC-bus voltage in the servo drive. Depending on the drive design, this energy may be dissipated through a braking resistor, shared with other axes or returned to the electrical supply by a regenerative unit.
This electrical energy management is important when the moving mass is large, speed is high, the axis is vertical or deceleration occurs frequently. It is a drive-system issue rather than a feature of the linear guide block or round-shaft bearing slider.
A motor holding brake should not automatically be treated as a service brake. On many servo systems, the brake is designed to hold a stationary vertical load after motion has stopped. Whether it can perform dynamic stopping must be confirmed from the motor and brake specifications.
What About Pneumatic and Hydraulic Slider Systems?
Not every linear slider system is servo-driven. A slider may be moved by a pneumatic cylinder or hydraulic actuator. In these systems, deceleration can be influenced by valve control, flow restriction, cylinder cushioning and external shock absorbers.
The slider still does not generate the deceleration command. It guides or supports the moving load while the cylinder and flow-control system reduce its velocity.
Pneumatic compressibility can make stopping behavior sensitive to load, pressure and speed. Cylinder end cushioning may reduce impact near the end of the stroke, but it should be adjusted for the actual moving mass and operating pressure. Hydraulic systems generally offer greater stiffness but still require appropriate flow and pressure control.
Are Shock Absorbers and Mechanical Stops Deceleration Controls?
An industrial shock absorber can convert kinetic energy into heat over a controlled stroke. It is often used as end-of-travel protection or as part of a mechanism specifically designed for mechanical stopping.
A rigid mechanical stopper provides a final travel boundary but dissipates energy over a very short distance. Repeatedly driving a table into a rigid stop can damage bearing raceways, increase shaft deflection, loosen mounting bolts and reduce positioning accuracy.
For a servo positioning axis, normal production stops should generally be completed by the programmed motion profile before the slider reaches the end protection. A shock absorber must be selected according to effective moving mass, impact velocity, energy per cycle, cycle frequency and available absorption stroke.
Normal Deceleration Is Not the Same as an Emergency Stop
Normal deceleration is part of the commanded production movement. The controller knows the target position and plans a repeatable velocity profile within the normal mechanical limits.
An emergency stop responds to an abnormal or hazardous condition. Its behavior depends on the machine's risk assessment, control architecture, drive safety functions, brake arrangement and available stopping distance. It should not be designed by simply entering the largest possible deceleration value.
For a detailed discussion of abnormal stopping conditions, read How to Ensure Emergency Stop Performance in a Linear Guideway System?
How Should a Deceleration Profile Be Selected?
Start with the maximum operating speed, total moving mass and available distance between the normal deceleration point and the travel limit. Calculate the theoretical stopping distance, then include controller response, drive response, S-curve transition distance, mechanical compliance and an appropriate engineering margin.
Next, calculate the inertial force and moment caused by the center-of-gravity offset. Check the slider loads, transmission force, motor torque, shaft or rail rigidity, support structure, coupling load and energy-handling capacity of the drive.
The final settings should be verified on the assembled machine. Observe motor current, following error, stopping position, vibration and settling time. Also check whether the sliders produce abnormal noise or whether the shafts, rails, supports or mounting table move during deceleration.
If the axis stops within the required distance but oscillates after reaching the target, a jerk-limited S-curve, lower deceleration, improved structural rigidity, shorter shaft span or wider slider spacing may be more effective than simply increasing servo gain.
What Information Is Needed to Select the Slider?
A slider supplier does not need to program the control system to evaluate the mechanical components. However, the supplier does need the motion parameters because deceleration changes the load applied to the guide structure.
- Profile rail, round shaft, supported shaft or module structure
- Maximum travel speed
- Acceleration and deceleration
- Total moving mass
- Center-of-gravity position
- Rail or shaft spacing
- Distance between sliders
- Stroke and available stopping distance
- Drive type and mounting orientation
- Required accuracy and operating environment
DLY supplies different linear slider structures, including profile-rail guide blocks, linear bearing sliders and SBR, TBR and SCS bearing units. The correct product direction should be confirmed from the rail or shaft structure before calculating load capacity.
Final Answer
The usual deceleration-control method for a servo-driven linear slider system is a programmed trapezoidal or S-curve motion profile. The controller defines the deceleration and jerk, while the motor and transmission generate the force needed to slow the moving table.
In pneumatic or hydraulic systems, deceleration is controlled through the actuator, valve, flow control, cushioning or an external energy-absorbing device. The slider itself does not provide the braking command.
Whether the machine uses a profile-rail block or a round-shaft bearing slider, the guiding components must withstand the inertial forces, moments, deflection and vibration produced during stopping. Reliable design therefore requires the slider, drive, transmission, moving load and control profile to be evaluated as one system.
